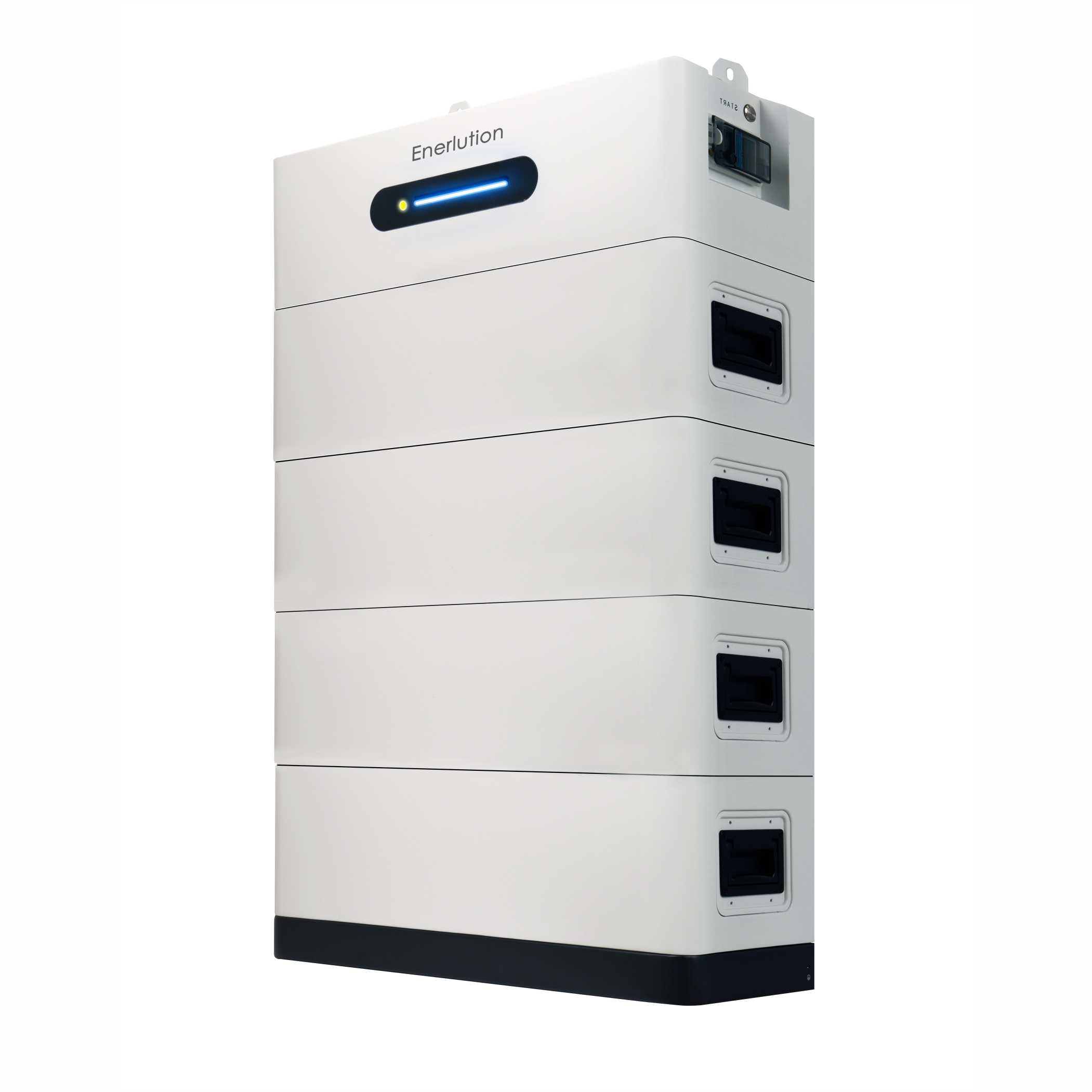

Household Energy Storage Equipment GH01-2662+PDU

1.High Voltage Stackable Energy Storage Battery
4.Support capacity selection 8kWh / 10.5kWh / 13kWh / 16kWh / 18.5kWh / 21kWh

2.Expansion Flexibility
2.66kWh modular design，scalable from 8kWh to 21kWh.

3.Smart O&M

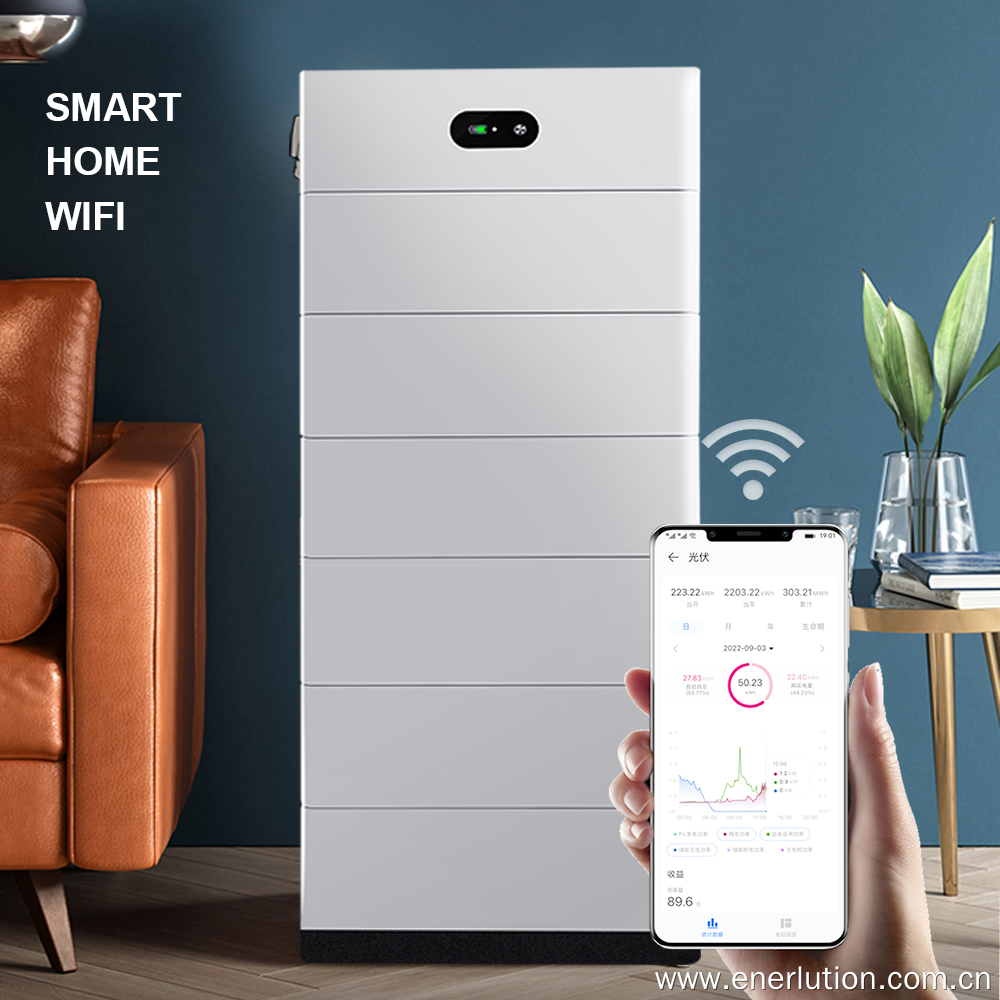

Check the APP to find data on your phone.Remote diagnosis and OTA.

4.Safe & Reliable
Lithium Iron Phosphate(LFP) cell only. BMS, fuse and aerosol kit are built in.

5.Environment Adaptability
Wider temperature range: -20°C~+55°C. IP65 protection class.

6.Perfect Compatibility
Compatible to most high voltage inverters in the market.

7.More Usable Energy
90% Depth of Discharge, more than 6000 cycles (0.5C, 25℃).

CONTACT US

Model

GH01-8K

GH01-10K

GH01-13K

GH01-15K

GH01-18K
GH01-21K

Capacity

52Ah

Nominal Voltage

153.6V

204.8V

256V

307.2V

358.4V409.6V

Battery Type

LiFeP04

Certification

CE,CB,RoHS,MSDS,IEC,UN38.3

Voltage Working Range

136.8V-170.4V

182.4V-227.2V228V-284V273.6V-340.8V319.2V-397.6V364.8V-454.4V

Working Temperature(℃)

Charge: 0℃~+55℃ Discharge : -20℃~+55℃

Nominal Capacity(kWh)

7.9kWh

10.6kWh

13.3kWh

15.9kWh

18.6kWh
21.2kWh

Max. Charge Current(A)

40A

Max.Discharge Current(A)

40A

Connection1P48S1P64S1P80S1P96S1P112S1P128S

IP Protection

IP65

Transportation SOC

30%

Storage

-20°C~+35°C

Temperature(℃)Cycle Life

>6000.25℃ 0.5C 90%DOD

Recycleable

Fully recyclable at the end of life

Istallation

Floor Installation
