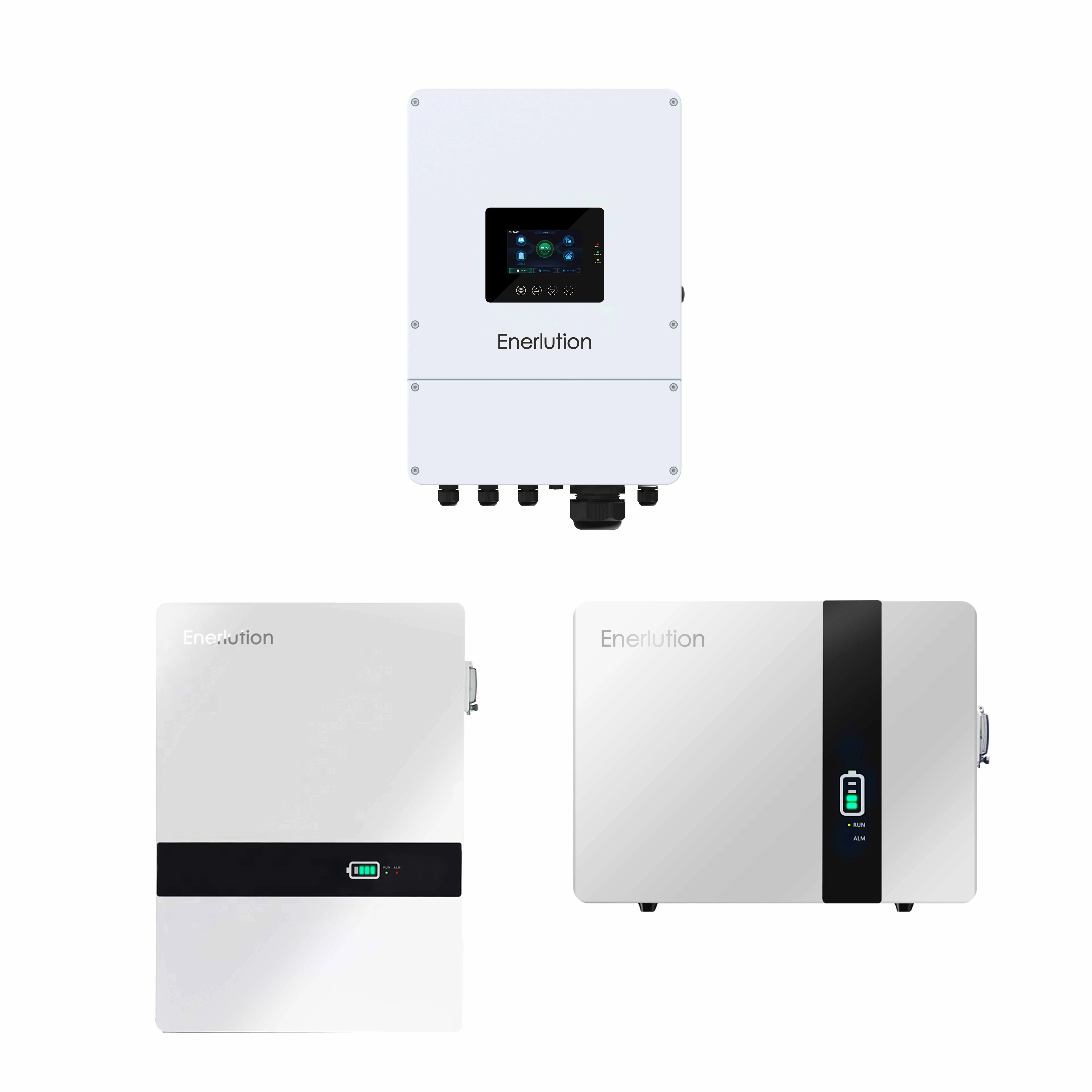

Low Voltage Single Phase Inverter+LFPWall-5K-10K
1. Inverter：
HY-4K-EU、HY-4.6K-EU、HY-5K-EU / HY-5.5K-EU、HY-6K-EU
2. Battery：
LFPWall-5K / LFPWall-10K-V2
Expansion Flexibility
support 1-8 batteries in parallel.
Easy Installation
Wall mounted or floor mounted, saving installation time and cost .
Safe & Reliable
Lithium Iron Phosphate(LFP) cell only. BMS built in.
Environment Adaptability
Wider temperature range: -20°C~+55°C. IP65 protection class .
Long Lifespan
More than 15 years, more than 6000 cycles （0.5C, 25℃）.
Low Voltage Single Phase Inverter + LFPWall-5K / 10K-V2
HY-4K-EU、HY-4.6K-EU、HY-5K-EU / HY-5.5K-EU、HY-6K-EU
+LFPWall-5000
Intelligent Energy Storage System Solution
HY-4K-EU、HY-4.6K-EU、HY-5K-EU / HY-5.5K-EU、HY-6K-EU
+LFPWall-10K-V2
Intelligent Energy Storage System Solution
| Model | LFPWall-5000 | LFPWall-10K-V2 |
|---|---|---|
| Rated Capacity | 100Ah | 204Ah |
| Rated Energy | 5.12kWh | 10.44kWh |
| Rated Voltage | 51.2V | 51.2V |
| Battery Voltage Range | 45~57.6V | 45~57.6V |
| Max Charging Current | 45A | 90A |
| Max Output Power | 3840W | 7168W |
| Battery Type | LiFePO4 | LiFePO4 |
| DOD | 90% | 90% |
| Modules Connection | 1~8 in parallel | 1~8 in parallel |
| Cycle Life | ≥6000 @25℃ 0.5C | ≥6000 @25℃ 0.5C |
| Working Temp Range | Charge: 0℃~+55℃ Discharge: -10℃~+55℃ | Charge: 0℃~+55℃ Discharge: -10℃~+55℃ |
| Gross Weight | 52.5kg/115lb | 125Kg/275lb |
| Package Dimension（W*H*D） | 536*464*180mm | 560*805*181mm |
| Model | HY-4K-EU | HY-4.6K-EU | HY-5K-EU/HY-5.5K-EU | HY-6K-EU |
|---|---|---|---|---|
| OFF-GRID OUTPUT | ||||
| Rated Output Power | 4000W | 4600W | 5500W | 6000W |
| Rated Output Voltage | 230Vac, single-phase or three-phase when in parallel | |||
| ON-GRID OUTPUT | ||||
| Rated Output Power | 4000W | 4600W | 5500W | 6000W |
| Max. Apparent Power | 8000VA | 9200VA | 11000VA | 12000VA |
| Rated Output Current | 17.4A | 20A | 24A | 26A |
| Max. Output Current | 19.1A | 22A | 26.4A | 28.6A |
| Rated Output Voltage | 230Vac, single-phase or three-phase when in parallel | |||
| BATTERY | ||||
| Battery Type | Lead-acid / Li-ion / User-defined | |||
| Rated Battery Voltage | 48Vdc | |||
| Battery Voltage Range | 40～60Vdc | |||
| Max. Utility Charging Current | 60A | |||
| Max. Generator Charging Current | 60A | |||
| Max. Hybrid Charging Current | 100A | |||
| PV INPUT | ||||
| Num. of MPPT | 2 | |||
| Max. PV Array Power | 3000W+3000W | 3500W+3500W | 4000W+4000W | 4500W+4500W |
| Max. Input Current | 16A+16A | |||
| Max. Open-circuit Voltage | 500Vdc+500Vdc | |||
| UTILITY / GENERATOR INPUT | ||||
| Input Voltage Range | 90～280Vac | |||
| Input Frequency Range | 50/60Hz | |||
| Bypass Overload Current | 40A | |||
| GENERAL | ||||
| Num. of Parallel | 1～6 units | |||
| Dimensions(W*H*D) | 345*556*182mm | |||
| Weight | 20kg | |||
| Protection Degree | IP65 | |||
| Operating Temp. Range | -25℃~+60℃, >45℃ derating | |||
| Cooling Method | heatsink & intelligent air cooling | |||
| Warranty | 5 years | |||
| COMMUNICATION | ||||
| Internal Interface | RS485 / CAN / USB / Dry contact | |||
| External Module (optional) | Wi-Fi / GPRS | |||
