Enerlution Battery Focuses on household and distributed energy storage solutions
Smart O&M
Check the APP to find data on your phone.Remote diagnosis and OTA
Expansion Flexibility
2.5kWh modular design ,Scalable from 7.5kWh to 20kWh
Easy Installation
24kg/52.9lb per battery box, easy to move and install. Plug connections between packs, wireless design.
Safe & Reliable
Lithium Iron Phosphate(LFP) cell only. BMS, fuse and aerosol kit are built in
Environment Adaptability
Wider temperature range: -20°C~+55°C. IP65 protection class
Perfect Compatibility
Compatible to most high voltage inverters in the market
More Usable Energy
90% Depth of Discharge, more than 6000 cycles (0.5C, 25°C)
| Model | GroundHV-2500 |
|---|---|
| Capacity | 52Ah |
| Max.Discharge | 35A |
| Charge Current | 35A |
| Battery Type | LiFePO4 |
| Installation | Ground-mounted |
Protection Level | IP6 |
| Transportation SOC | 30% |
Wi-Fi Module | Optional |
Working Temperature | Charge: 0°C~+50°C Discharge: -10°C~+55°C |
Storage Temperature | -20°C~+35°C |
| Each Pack | 23.5kg/220*580*170mm |
| PDU+Base | 14kg/220*606*220mm |
| PDU/Pack Package Dimension | 606*220*225mm |
| Model | GroundHV-7.5K | GroundHV-10K | GroundHV-12.5K | GroundHV-15K | GroundHV-17.5K | GroundHV-20K |
|---|---|---|---|---|---|---|
Nominal Voltage | 144V | 192V | 240V | 288V | 336V | 384V |
Connection | 1P45S | 1P60S | 1P75S | 1P90S | 1P105S | 1P120S |
Voltage Working Range | 114.7V-159.7V | 153V-213V | 191.2V-266.2V | 230V-319V | 267.7V-372.7V | 306V-426V |
| Rated Energy | 7.488kWh | 9.984kWh | 12.48kWh | 14.976kWh | 17.472kWh | 19.968kWh |
| Weight | ~80kg/176lb | ~105kg/231lb | ~129kg/284lb | ~152.3kg/335lb | ~176.2kg/388lb | ~199.5kg/438lb |
| Dimensions (W*H*D) | 606*730*220mm | 606*900*220mm | 606*1070*220mm | 606*1240*220mm | 606*1410*220mm | 606*1580*220mm |
Home Energy Storage System
Environmentally Friendly Electricity

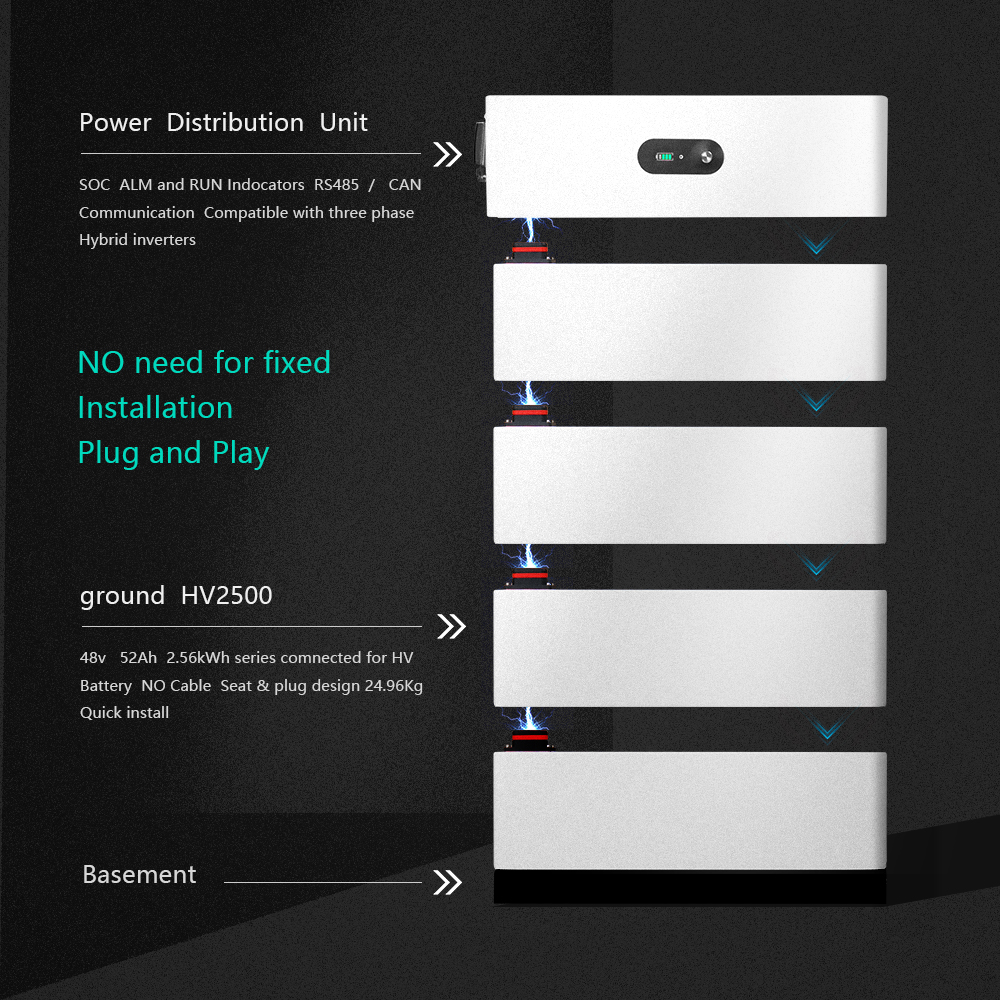

Power Distribution Unit
SOC ALM and RUN Indocators RS485 / CAN Communication Compatible with three phase Hybrid inverters.
NO need for fixedInstallationPlug and Play.
48v 52Ah 2.56kWh series comnected for HV Battery NO Cable Seat & plug design 24.96Kg Quick install.
Packaging & delivery
Packaging Details
cardboard box or wooden box
Wholesale 48V100ah 51.2V 200Ah 150ah 300ah Iron Phosphate LifePo4 Batteries Lithium Solar stacked hv Battery
Port
Yantian Shekou
service assurance
◾ TRADE ASSURANCE 100% Refund oftrade assurance amount
◾ Maintain the time and quality of arrival
◾ keepyourtransaction more safe
ABOUT OUR FACTORY
Enerlution Lithium Lifepo4 Solar Home Battery Solar Energy Systems,
which can match most global brand inverters. We supply to many online
and offline brands who do business on Alibaba.
Welcome ODM and OEM orders !
We provide you with ‘Enough capacity, Short Lead Time, Full set
of certificates !’
Please contact us if you have any questions.
service
Our products include lithium battery energy storage system (residential , industrial and commercial), most popular inverters, solar panels, or a complete system
of photovoltaic off-grid, on-grid or hybrid grid combination systems with different specifications. Our professional tech team will give you supports on product
and technology. What’s more, our sales team will give you considerate service before sale and after sale.
Enerlution Energy Technology Co., Ltd., established in Hefei in 2017, is a national high-tech enterprise focusing on R & D, production and sales of BMS systems, household energy storage systems and small industrial and commercial energy storage systems.
We are confident to say that our customization service is outstanding. Here is one of the testimonies from our old customer, They are highly capable of creating things to our exact requirements.
