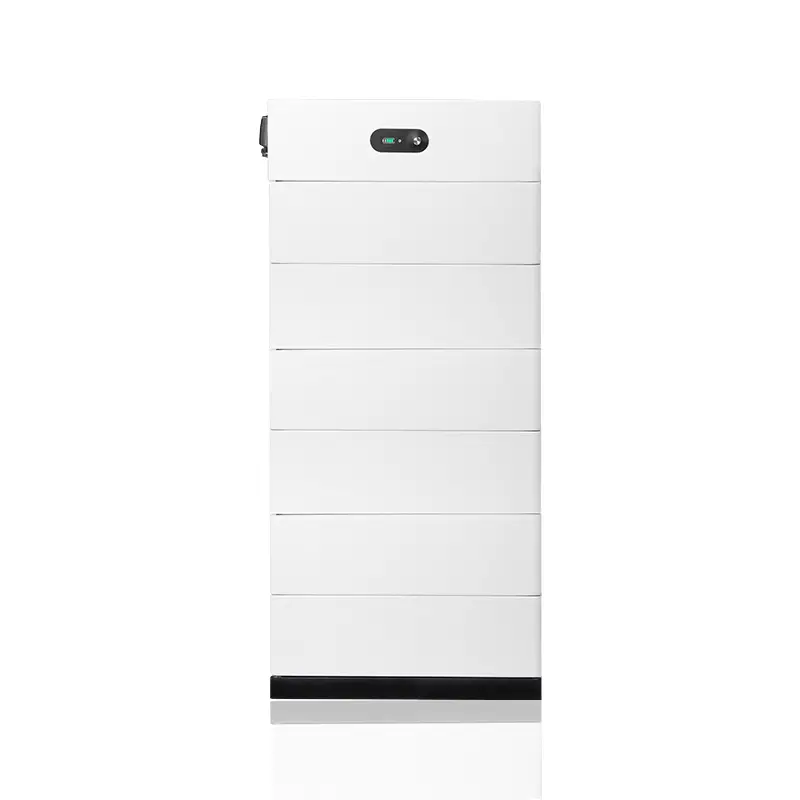

High Voltage Stackable Energy Storage Battery----GroundHV 2500+PDU
Smart O&M
Check the APP to find data on your phone.Remote diagnosis and OTA
Expansion Flexibility
2.5kWh modular design ,Scalable from 7.5kWh to 20kWh
Easy Installation
24kg/52.9lb per battery box, easy to move and install. Plug connections between packs, wireless design.
Safe & Reliable
Lithium Iron Phosphate(LFP) cell only. BMS, fuse and aerosol kit are built in
Environment Adaptability
Wider temperature range: -20°C~+55°C. IP65 protection class
Perfect Compatibility
Compatible to most high voltage inverters in the market
More Usable Energy
90% Depth of Discharge, more than 6000 cycles (0.5C, 25°C)
| Model | GroundHV-2500 |
|---|---|
| Capacity | 52Ah |
| Max.Discharge | 35A |
| Charge Current | 35A |
| Battery Type | LiFePO4 |
| Installation | Ground-mounted |
Protection Level | IP65 |
| Transportation SOC | 30% |
Wi-Fi Module | Optional |
Working Temperature | Charge: 0°C~+50°C Discharge: -10°C~+55°C |
Storage Temperature | -20°C~+35°C |
| Each Pack | 23.5kg/220*580*170mm |
| PDU+Base | 14kg/220*606*220mm |
| PDU/Pack Package Dimension | 606*220*225mm |
| Model | GroundHV-7.5K | GroundHV-10K | GroundHV-12.5K | GroundHV-15K | GroundHV-17.5K | GroundHV-20K |
|---|---|---|---|---|---|---|
Nominal Voltage | 144V | 192V | 240V | 288V | 336V | 384V |
Connection | 1P45S | 1P60S | 1P75S | 1P90S | 1P105S | 1P120S |
Voltage Working Range | 114.7V-159.7V | 153V-213V | 191.2V-266.2V | 230V-319V | 267.7V-372.7V | 306V-426V |
| Rated Energy | 7.488kWh | 9.984kWh | 12.48kWh | 14.976kWh | 17.472kWh | 19.968kWh |
| Weight | ~80kg/176lb | ~105kg/231lb | ~129kg/284lb | ~152.3kg/335lb | ~176.2kg/388lb | ~199.5kg/438lb |
| Dimensions (W*H*D) | 606*730*220mm | 606*900*220mm | 606*1070*220mm | 606*1240*220mm | 606*1410*220mm | 606*1580*220mm |
Home Energy Storage System
Environmentally Friendly Electricity
Power Distribution Unit
SOC ALM and RUN Indocators RS485 / CAN Communication Compatible with three phase Hybrid inverters.
NO need for fixedInstallationPlug and Play.
48v 52Ah 2.56kWh series comnected for HV Battery NO Cable Seat & plug design 24.96Kg Quick install.
