Balcany PhotoValtatic System-1PV+Inverter（400W）+Battery（URA-MESS1）
1.Solar Panel：
415W*1 pcs(full black)
2. Inverter:
Micro-inverter: 300/400W*1 pcs
3.Battery:
URA-MESS1

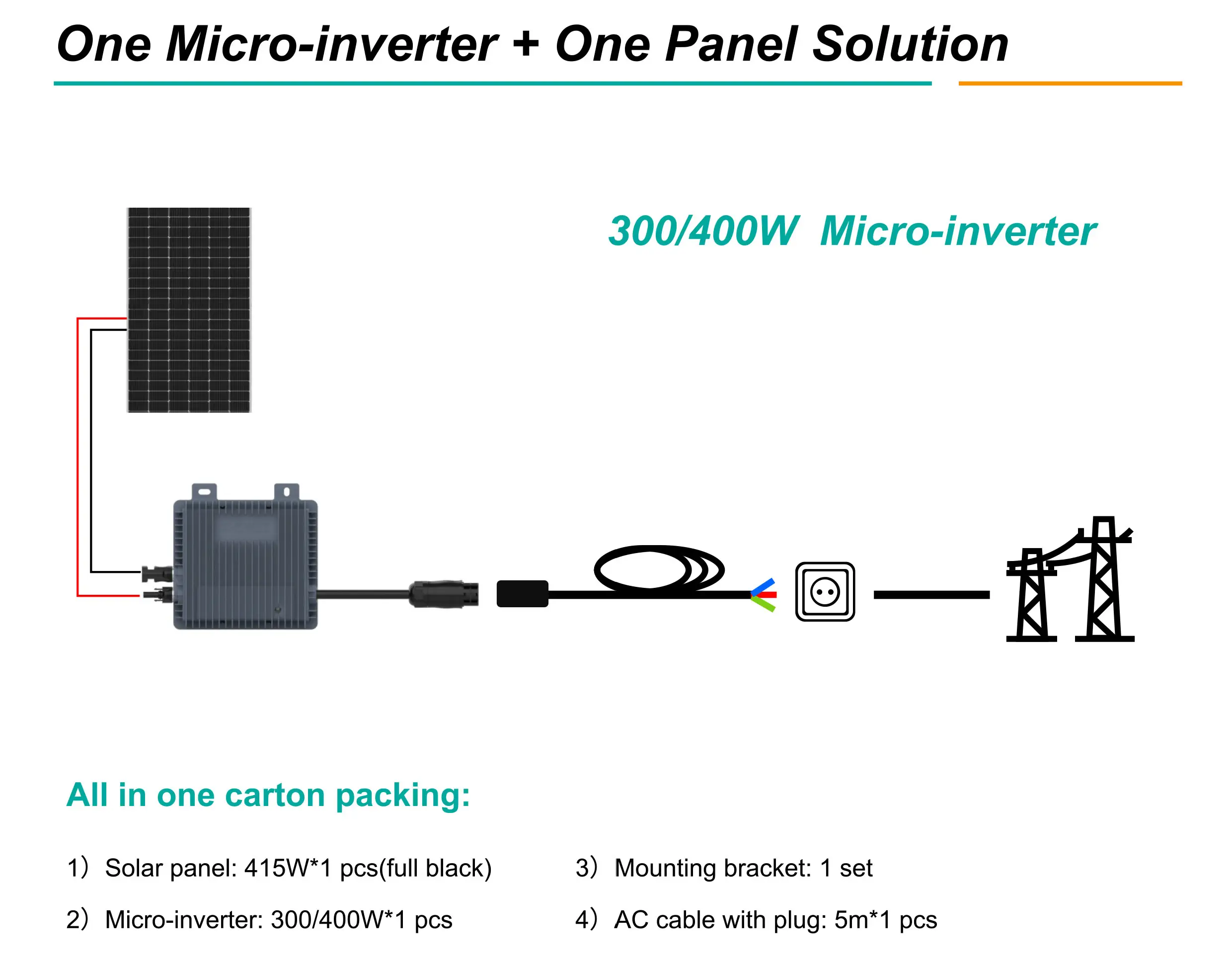

4.All in one carton packing:
1) Solar panel: 415W*1 pcs(full black)
2) Micro-inverter: 300/400W*1 pcs
3) Mounting bracket: 1 set
4) AC cable with plug: 5m*1 pcs
1.Solar Panel：
415W*1 pcs(full black)
2. Inverter:
Micro-inverter: 300/400W*1 pcs
3.Battery:
URA-MESS1
4.All in one carton packing:
1) Solar panel: 415W*1 pcs(full black)
2) Micro-inverter: 300/400W*1 pcs
3) Mounting bracket: 1 set
4) AC cable with plug: 5m*1 pcs
Balcany PhotoVoltatic System: 1PV+Inverter（400W）+Battery（URA-MESS1）
Technical Paramerters
| Micro-inverters 300W/400W | |
EWAY VN1T03NN1T04 is a high-efficiency micro-inverter that can be connected to a single solar panel. They are usually installed on the roof, under the panels. The portable micro-inverter is only 1.8kg and is easy to install. It can also be combined with other EWAY micro-inverters, for optimal flexibility of y our PV installation. Highlights: • DC input 14A, AC output 400W • Individual optimization, separate dedicated MPPT for each panel. • New topology design with EU efficiency up to 95.3%. • Suitable for EWAY-ESK series AC module solution. • Plug and Play installation, Easy to install. • Max. DC voltage 60V. No threat for high DC voltage. • Integrated LoM protection function. Ensure the safety of power grid. • Die casting design and glue filling technology. Better thermal disspation. • Guaranteed quality with standard 12 y ears warranty. | |
| Model | EWAY VN1T03NN1T04 |
| Input Data (DC) | |
| Recommended Module Power [W] | 300~550 |
| Start up Voltage per Input [V] | 18 |
| Mppt Voltage Range per Input [V] | 16~60 |
| Max. Input Voltage per Input [V] | 60 |
| Max. Input Current per Input [A] | 14 |
| Max. Input Short-circuit Current per Input [A] | 22 |
| Output Data (DC) | |
| Max. Continous Output Power [VA] | 400 |
| Nominal Continous Output Power [W] | 400 |
| Nominal Output Current [A] | 1.74 |
| Max. Output Current [A] | 2.48 |
| Nominal Output Voltage [V] | 220/230/240, L/N/PE |
| Nominal Frequency [Hz] | 50/60 |
| Power Factor | >0.99 default, 0.8 leading... 0 .8 lagging |
| Output Current Harmonic Distortion | 3% |
| Max. Units Per Branch | 9 |
| Efficiency | |
| CEC Weighted Efficiency | 95.50% |
| EU Efficiency | 95.30% |
| Mppt | 99.90% |
| Night Time Power Consumption [mW] | <50 |
| Mechanical Data | |
| Dimensions (W*H*D mm) | 184*182*42 |
| Weight [kg] | 1.5 |
