Balcany-PhotoVoltaci System-Battery(URA-MESS1)+Inverter(1600W)+4PV

1. Balcany-PhotoVoltaic System-Battery(URA-MESS1)+4PV+Inverter(1600W)

3. Technical Parameters


4. 1600W Micro-inverter
   Model	1600W-EWAY-VN4T16
   EWAY VN4T16 is a high-efficiency micro-inverter that can be connected to four  solar panels.  They are usually installed on the roof, under the panels. The portable micro-inverter is only 3.75kg and is easy to install. It can also be combined with other EWAY micro- inverters, for optimal flexibility of y our PV installation.  Highlights:  • DC input 16A, AC output 1600W • Individual optimization, separate dedicated MPPT for each panel. • New topology design with EU efficiency up to 95.3%. • Suitable for EWAY-ES series AC module solution. • Plug and Play installation, Easy to install. • Max. DC voltage 60V. No threat for high DC voltage. • Integrated LoM protection function. Ensure the safety of power grid. • Die casting design and glue filling technology. Better heat dissipation. • Guaranteed quality with standard 12 y ears warranty.
   Input Data (DC)
   Recommended Module Power [W]	300~550
   Start up Voltage per Input [V]	18
   Mppt Voltage Range per Input [V]	16~60
   Max. Input Voltage per Input [V]	60
   Max. Input Current per Input [A]	14
   Max. Input Short-c ircuit Current per Input [A]	20
   Quantity of MPPT	4
   Output Date (AC)
   Max. Continous Output Power [VA]	1600
   Nominal Continous Output Power [W]	1600
   Nominal Output Current [A]	7
   Max. Output Current [A]	10.5
   Nominal Output Voltage [V]	220/230/240, L/N/PE
   Nominal Frequency [Hz]	50/60
   Power Factor	>0.99 default, 0.8 leading... 0.8 lagging
   Output Current Harmonic Distortion	<3%
   Max. Units Per Branch	2
   Efficiency
   CEC Weighted Efficiency	95.50%
   EU Efficiency	95.30%
   MPPT	99.90%
   Night T ime Power Consumption [mW]	<50
   Mechanical Data
   Dimensi ons (W*H*D mm)	342*223*30
   Weight [kg]	3.2

5.


6.


7. 1.Balcany-PhotoVoltaci System-Battery(URA-MESS1)+4PV+Inverter(1600W)

8.


2.Battery:
URA-MESS1

3.Inverter:

1600W-EWAY-VN4T16

4.Panel:4 Pieces

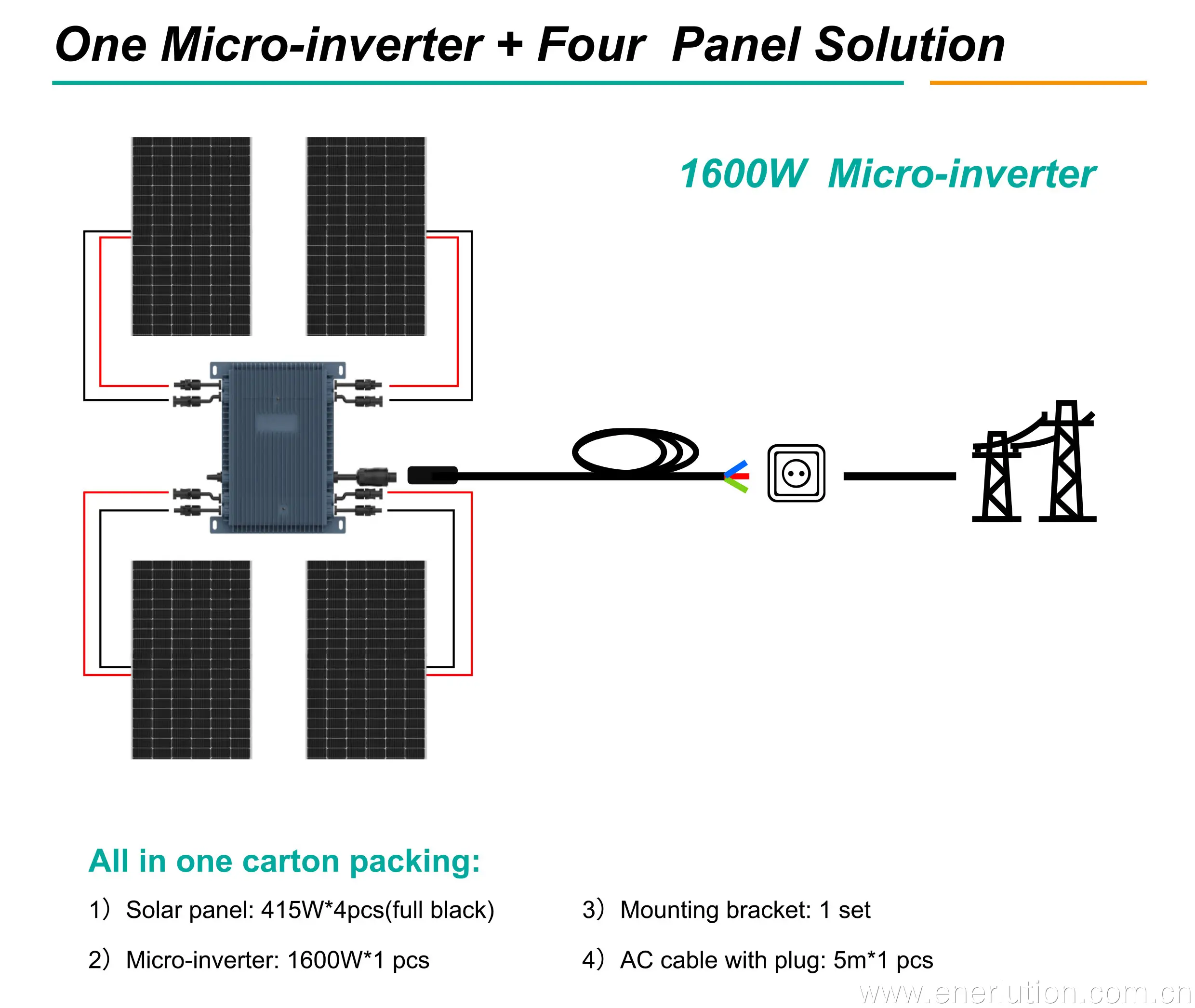

5.All in one carton packing:

1) Solar panel: 415W*4pcs(full black)

2) Micro-inverter: 1600W*1 pcs

3) Mounting bracket: 1 set

4) AC cable with plug: 5m*1 pcs
