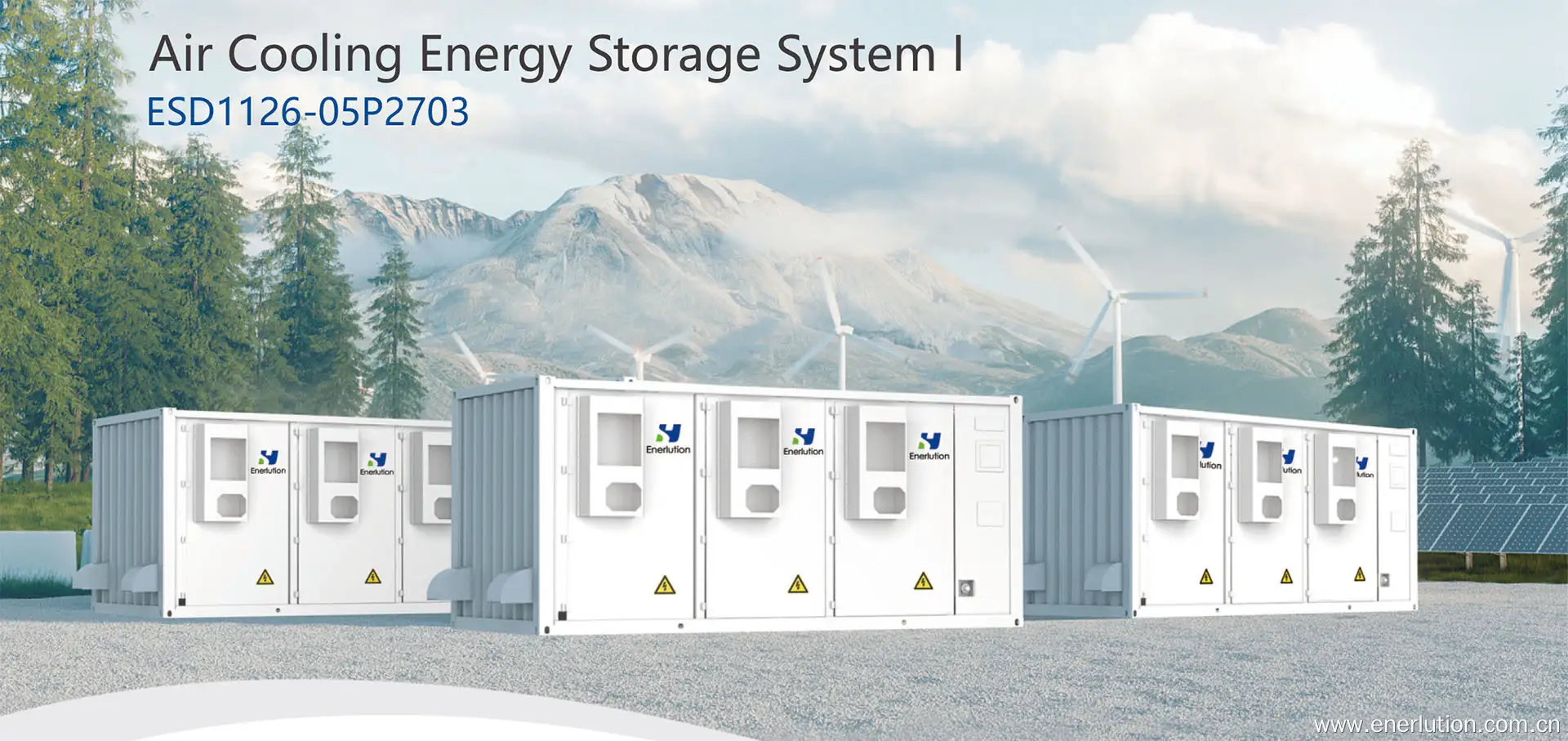

Air-cooling Energy Storage System--ESD1126-05P2703
Standardization
• 20ft Standard container
• Modular design and optimal layout
Space Optimization
• High volumetric energy density
• Double containers connection
Intelligent Temperature Control
• Modular management for temp uniformity
• Automatic security system+full immersion
+fast response
Superior Performance
• Super long cycle life
• High conversion efficiency
Air-cooling Energy Storage System-ESD1126-05P2703
Technical Parameters
| Model | ESD1126-05P2703 |
| Electrical | |
| Cell Model | LFP-100Ah |
Pack Configuratio | Pack: 4P16S Rack: 4P352S Container System: 24P352S |
| Cycle Life | Cell:≥6000 0.5P,@25℃±3℃ |
| Nominal Energy (kWh)(0.5P,25℃） | Pack:20.5 Rack:450.6 Container System:2703.3 |
| Usable Energy (kWh) | Container System:2528 （0.5P@25℃） |
| Rated Voltage (Vdc) | Pack:51.2 Rack/Container System:1126.4 |
| Recommended Voltage Range (Vdc) | Pack:44.8~57.6 Rack/Container System:985.6-1267.2 |
| Max.Charge Power (kW) | 1351(0.5P) |
| Conditions | |
| Storoage Temperature(℃） | -30~60 |
| Operating Temperature(℃） | -30~50 |
| Working Relative Humidity(%) | 0~90（non-condensing) |
| Altitude(m) | ＜3000（≥3000 derating) |
| Parameters | |
| Ingress Protection | Ip54 |
| Cooling | Air Conditioning |
| Communication Interface | CAN,RS485,Ethernet |
| Fire Suppression System | HFC-227ea (Cell-level temp monitoring +heat insulation+Multi-stage fire suppression system) |
| Standards&Certification | UL1973,UL9540A,UL9540,IEC62619,IEC63056,IEC62477 IEC62933,IEC60730,IEC61000,UN38.3,NFPA855 Compliant |
Dimensions(W*D*H)mm | 6058*2438*2896(20ft Container) |
| Weigh(T) | <=32 |
Features
Standardization
• 20ft Standard container
• Modular design and optimal layout
Space Optimization
• High volumetric energy density
• Double containers connection
Intelligent Temperature Control
• Modular management for temp uniformity
• Automatic security system+full immersion
+fast response
Superior Performance
• Super long cycle life
• High conversion efficiency
