Safety and Strong Adaptability
Perfluoroexanone fully immersed firefighting
wide battery operating temperature range
Available in wide variety of application enviroments
Flexible Switching
Supports dual circuit redundant power supply with priority on grid AC power
Seamless switching from AC to DC in case of grid power loss
Comprehensive Protection
Supports Modbus-TCP for network port communication
Creating a three-level protection and control strategy for the lithium battery BMS
Real-time BMS detection to protect the battery system
Intelligent and User-Friendly
Software availability>99%
Supports remote software upgrades
Supports Unattended remote O&M
Safety and Strong Adaptability
Perfluoroexanone fully immersed firefighting
wide battery operating temperature range
Available in wide variety of application enviroments
Flexible Switching
Supports dual circuit redundant power supply with priority on grid AC power
Seamless switching from AC to DC in case of grid power loss
Comprehensive Protection
Supports Modbus-TCP for network port communication
Creating a three-level protection and control strategy for the lithium battery BMS
Real-time BMS detection to protect the battery system
Intelligent and User-Friendly
Software availability>99%
Supports remote software upgrades
Supports Unattended remote O&M

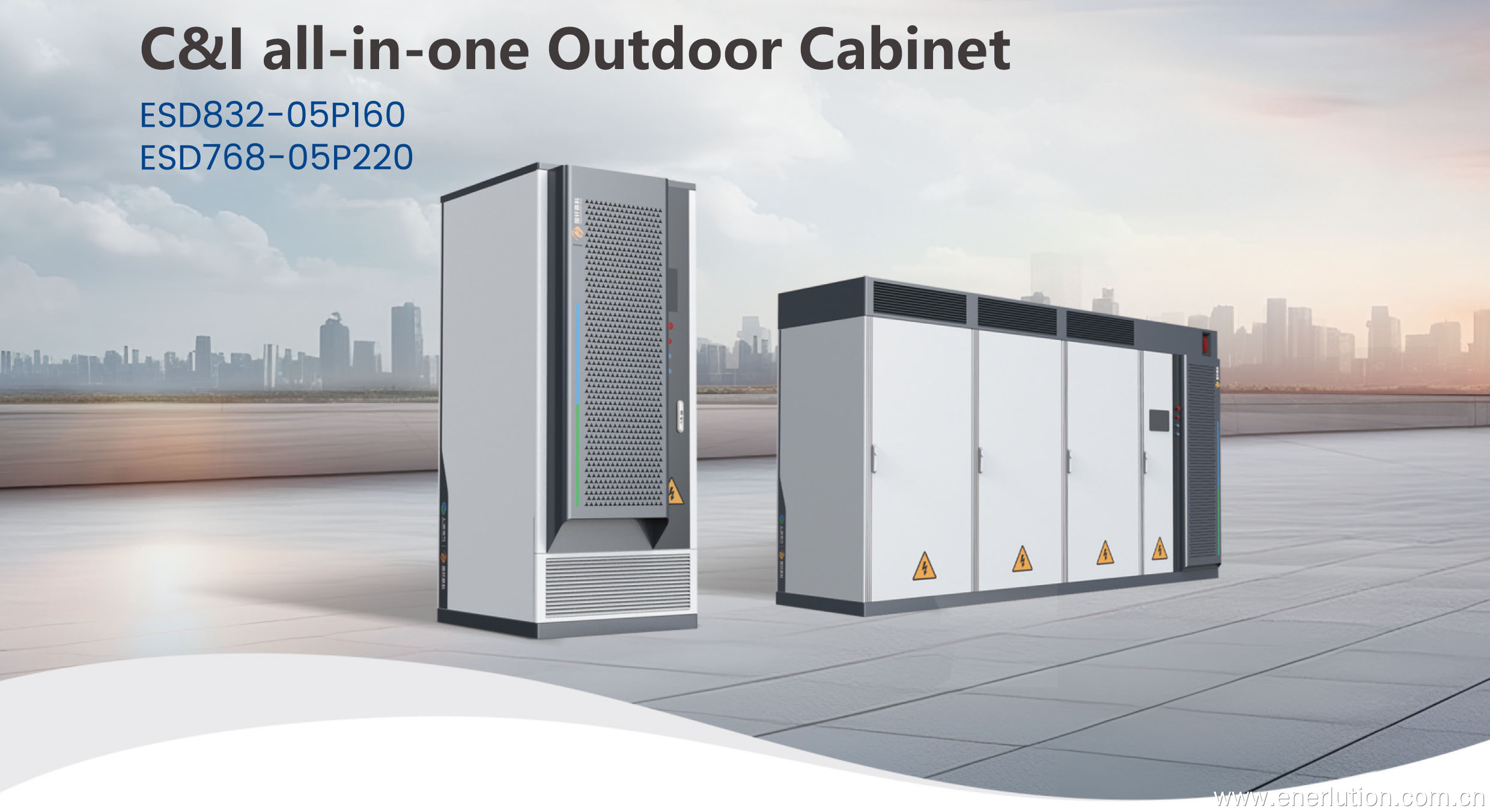

ESD832-05P160+ESD768-05P220
Technical Parameters
| Model | ESD832-05P160 | ESD768-05P220 |
| Electrical | ||
| Cell Type | 3.2V/96Ah | |
| Grouping Model | 2P20S*13 | 2P20S*13 |
Max.Charge/Discharge Rate | 0.5P@25℃ | |
| Nominal Capacity (kWh) | 160 | 220 |
| Usable Energy (kWh) | 150 | 200 |
| Voltage Range (V) | 728~936 | 672~864 |
| AC Side | ||
| Rated Power(kW) | 75 (provide short-term 100kW power support) | 100 |
| Maximum conversion efficiency(%) | 98.4 | 98 |
| Total Harmonic Distortion Ratio (THD)(%) | <3 | |
| System Parameters | ||
| Working Temp Range(°C) | -20~45 | |
| Anti-corrosion grade | C3-M(higher standards can be customized) | |
| Operating Humidity Range(%) | 0-95(non-condensing) | |
| Cooling Mode | Air Cooling | |
| Altitude(m) | ＜3000（≥3000 derating) | |
| Maximum system efficiency(%) | 91 | |
| System cycle life | ≥8000,0.5C@25℃ C100%DOD | |
| Fire Suppression System | HFC-227ea/Novec1230 | |
| Communication Protocol | RJ45 interface and TCP/IP | |
| Certification | IEC62619,IEC61000,UL1973,UL9540A,UN38.3 | |
| Ingress Protection | IP54 | |
| Dimension(W * D * H)mm | 1000*1100*2400 | 1500*1250*2400 |
| Weight (T) | 2.0 | 2.4 |
Safety and Strong Adaptability
Perfluoroexanone fully immersed firefighting
wide battery operating temperature range
Available in wide variety of application enviroments
Flexible Switching
Supports dual circuit redundant power supply with priority on grid AC power
Seamless switching from AC to DC in case of grid power loss
Comprehensive Protection
Supports Modbus-TCP for network port communication
Creating a three-level protection and control strategy for the lithium battery BMS
Real-time BMS detection to protect the battery system
Intelligent and User-Friendly
Software availability>99%
Supports remote software upgrades
Supports Unattended remote O&M
