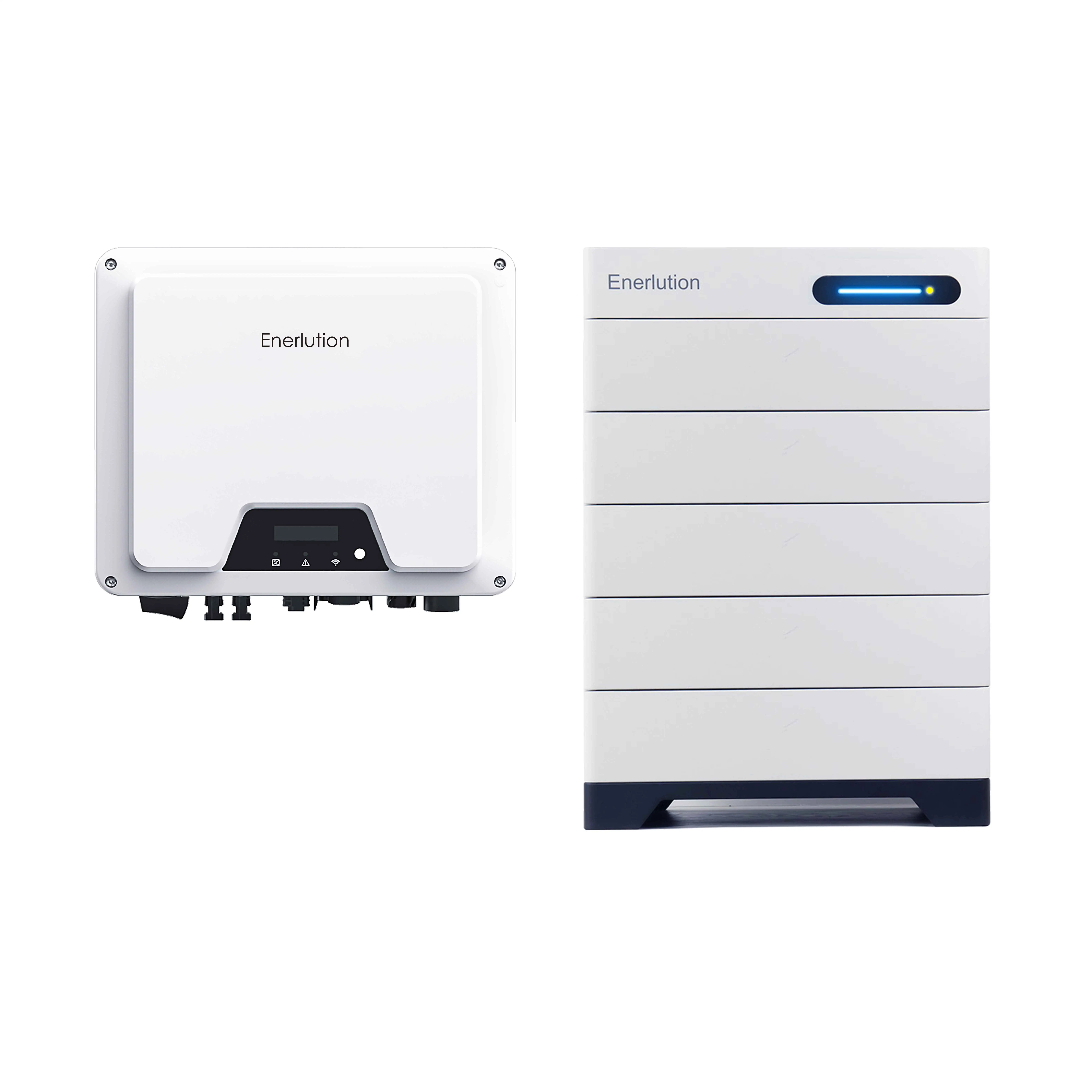

Enerlution Battery with Inverter: HYTH(Inverter)+GH02-5324(Battery)
Intelligent High Voltage Three Phase System：High Voltage Stackbale Battery Series+Three Phase HYTH Inverter Series.
1、Inverter：HYTH-8000、HYTH-10000、HYTH-12000、HYTH-15000
2、Battery：GH02-15K、GH02-21K、GH02-26K、GH02-31K、GH02-37K、GH02-42K
Peak Efficiency 98.2%
Max. DC Overload 50%
Aluminum Alloy Die Casting
MES + FCT + CRM Infrastructure
Easy to Install and Service
Energy Managment
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Three Phase High Voltage Inverter Series+High Voltage Stackbale Battery Series
GH02-5324
Battery Parameters
| Model | GH02-15K | GH02-21K | GH02-26K | GH02-31K | GH02-37K | GH02-42K |
|---|---|---|---|---|---|---|
| Nominal Voltage | 153.6V | 204.8V | 256V | 307.2V | 358.4V | 409.6V |
| Connection | 2P48S | 2P64S | 2P80S | 2P96S | 2P112S | 2P128S |
| Voltage Working Range | 114.7V-159.7V | 153V-213V | 191.2V-266.2V | 230V-319V | 267.7V-372.7V | 306V-426V |
Rated Energy | 15.974kWh | 21.299kWh | 26.624kWh | 31.949kWh | 37.274kWh | 42.598kWh |
Three Phase Hybrid Inverter Series
Inverter Parameters
| Model | HYTH-8000 | HYTH-10000 | HYTH-12000 | HYTH-15000 |
|---|---|---|---|---|
| BATTERY INPUT DATA | ||||
| Battery Type | Lead-acid or Li-lon | |||
| Battery Voltage Range /V | 160-800 | |||
| Max. Charg/Discharge Current /A | 25/25 | |||
| Charging Curve | 3 Stages | |||
| Charge Strategy for Li-Ion Battery | Self-adaption to BMS | |||
| PV INPUT | ||||
| Max. PV Power / W | 12000 | 15000 | 18000 | 18000 |
| Max. Input Voltage / V | 1000 | |||
| Rated input votlage /V | 620 | |||
| Start up voltage /V | 145 | |||
| MPPT Voltage Range/ V | 150~850 | |||
| Max. Input Current / A | 15/15 | 30/15 | ||
| Max. Short Circuit Current / A | 20/20 | 40/20 | ||
| No. of MPPTs / No. strings per MPPT | 2/ (1/1) | 2/ (1/1) | ||
| AC OUTPUT / INPUT | ||||
| Rated Power / W | 8000 | 10000 | 12000 | 15000 |
| Max. Apparent AC Power from grid / VA | 16500 | 16500 | 20000 | 22000 |
| Max. Apparent Power / VA | 8800 | 11000 | 13200 | 16500 |
| Max. Output Current / A | 13.5 | 16 | 20 | 24 |
| Max. Current from grid / A | 23 | 23 | 29 | 29 |
| Output Frequency and Voltage / V | 50/60Hz; 3L/N/PE 380/400 | |||
| Power Factor | 0.8ind - 0.8cap | |||
| TH Di @ Rated Power | <3% | |||
| EFFICIENCY | ||||
| Max. Efficiency | 98.2% | 98.5% | ||
| Euro Efficiency | 97.3% | 97.4% | 97.5% | |
| MPPT Efficiency | 99.9% | |||
Integrated | Anti-Islanding Protection;PV String Input Reverse Polarity Protection; Insulation Resistance Detection; Residual Current Monitoring Unit;Output Over Current Protection; Output Short Circuit Protection; Over Voltage Protection;Battery Reverse Protection | |||
Surge Protection | DC: Type II / AC: Type II | |||
| GENERAL DATA | ||||
| Operating Ambient Temperature / °C | -25 ~ +60 | |||
| Cooling Method | Natural Cooling | Samrt Cooling Concept | ||
| Communication with BMS | CAN/RS485 | |||
| Dimensions (W*H*D) / mm | 425*351*200 | |||
| Weight / kg | 20 | 23 | ||
| Protection Class | IP 65 | |||
| PV Connection Type | MC4 | |||
| Battery Connection Type | SUNCLIX | |||
