Enerlution、hybess - Exclusive latest patented products Integrated cabinet Standard Specification 30KW 60KW 120KW Lithium battery cabinet Commercial Energy Storage System

While Hefei Huayu Zhihang Power Energy Co., Ltd. consciously carrying out personnel training and technological innovation, it also continuously strengthens external communication and exchanges to improve its own competitiveness. Commercial Energy Storage System indeed plays an essential role in our everyday activities.The Best product are undeniably beautiful, legendary in their own way and yet timeless enough to remain popular throughout a brief period of time. Driven by the corporate vision of 'being the most professional manufacturer and the most reliable exporter in the international market', Hefei Huayu Zhihang Power Energy Co., Ltd. will pay more attention to enhancing R&D strength, continually upgrade technologies, and optimize organization structure. We encourage all the staff to unite together in this process for creating a better future for the company.

Product Description

Packing & Delivery

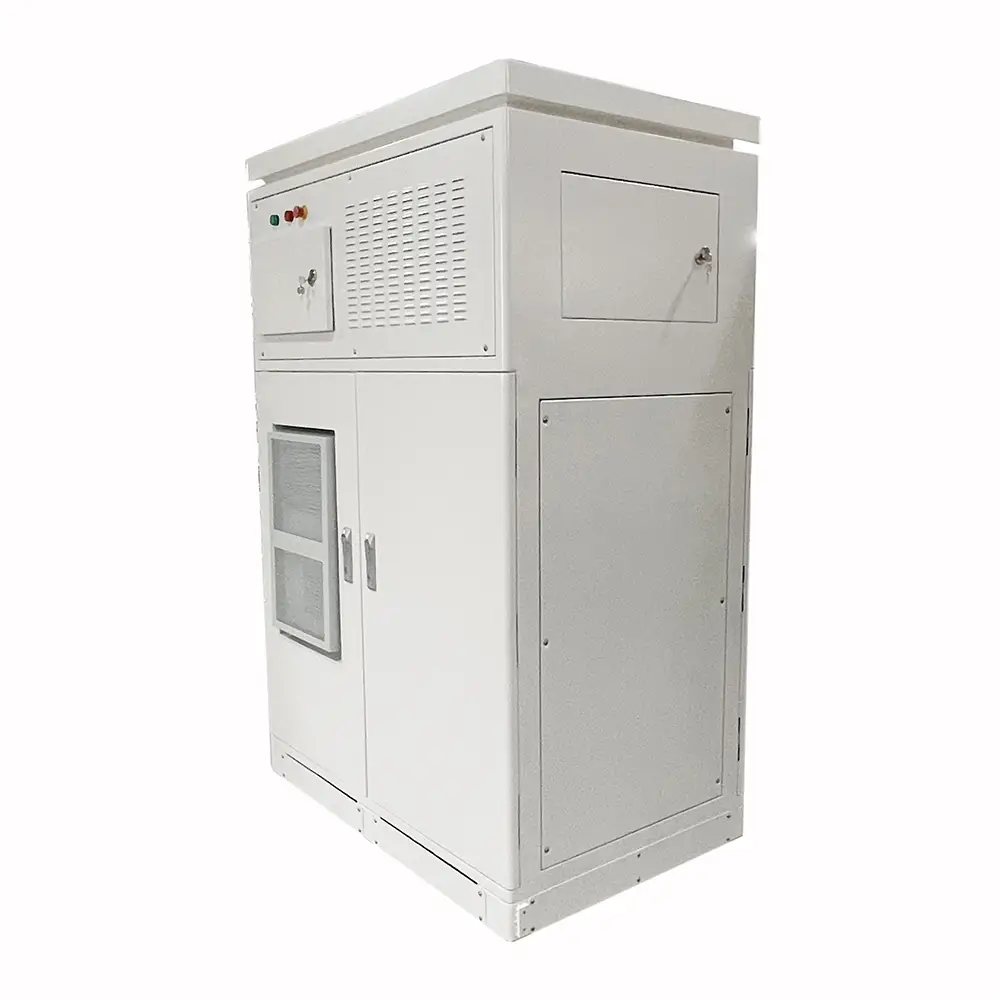

Integrated cabinet Standard Specification

Enerlution was founded by wealthy knowledge about LiFePO4 battery, EV pack, energy storage, and smart control solutions. For energy storage solutions, we developed intelligent EMS and BMS for optimizing energy utilization and maximizing electricity cost savings by peak shifting or solar generation self-consumption. We are aiming for providing safe and high-efficiency energy solutions to our global customers on the strength of strong R&D capabilities, outstanding technologies and advanced manufacture management. Integrated cabinet commercial batteries series, are one of our super star products. We have specifications as followed: 1. 30KW---64.5KWH 2. 30KW---80.6KWH 3. 60KW---156KWH 4. 60KW---242KWH 5.120KW---242KWH 6.120KW---322KWH

Catagory

Project

Product model

3032

3040

3048

3064

3075

3086

11

Battery

Cell type

Lithium iron phosphate

Cell capacity（Ah）

105

210

Cell nominal voltage（V）

3.2

Battery capacity（kWh）

32.256

40.32

48.384

64.512

75.264

86.016

Voltage range（V）

273.6~340.8

273.6~340.8

342~426

410.4~511.2

319.2~397.6

364.8~454.4

Maximum charging/discharging current（A）

52.5

97

83

73

Maximum charging/discharging power（kW）

16

20

24

30

30

30

Life cycle（25℃，85%DOD）

≥6000

Photovoltaic (pv) interface

Maximum DC input voltage（V）

850

MPPT Operating voltage range（V）

150~550

Starting voltage（V）

150

Maximum input current（A）

100

Maximum DC input power（kW）

30

MPPT input numb

1

MPPT efficiency

≥99%

AC side

Rated input power（kW）

30

Input type

three phase five wire system

Rated voltage（Vac）

380±15%

Rated current（A）

45

Rated frequency and range（Hz）

50/60

Power factor adjustment range

±1

Harmonic content THDi

≤3%

System Working mode

Grid mode

Self-use / peak cutting and valley filling / power backup

Off grid mode

Y

Others

Maximum net weight of system (kg)

650

700

750

870

950

1030

System size (mm)

1220×860×1850

Installation

Ground mounted

Protection grade

IP54

Working efficiency

Operating temperature

﹣10~45℃

Storage temperature

﹣20~55℃

Relative humidity

0~95%

Working altitude

Altitude < 2000m, no derating

Temperature control mode

air conditioner

Fire control mode

FM200

Noise level

≤50dB

Company Profile

Focusing on household energy storage and small distributed energy storage system, we have made outstanding achievements in EMS (energy management system), BMS (battery management system), thermal management and safety management of life cycle of battery system , and some research and development achievements are leading in the industry. We use the lithium iron phosphate A-Grade cell from Gotion High-tech, combined with the independent development of EMS, BMS and other core components, so that the energy storage system can meet the requirements of long life, high safety and high reliability. We have the ISO9001 quality system certification, the whole series of products have UN38.3, MSDS, IEC62619, CE certification, some products also have UL1973, CB certification. We have perfect EMS, BMS, INVERTER and LFP Battery laboratories, which can conduct environmental adaptability tests for energy storage system at high temperature, low temperature and humidity and heat, and reliability tests for electronic devices such as safety regulations, pulse, ESD and EMC. It can carry out the function test of over charge protection, over discharge protection, high and low temperature protection, SOC accuracy, SOE accuracy, voltage and current accuracy, etc. It can carry out the aging and actual working condition simulation test of the energy storage system. We have an automatic PACK production line and a semi-automatic PACK trial production line, which can adapt to the production of different models of PACK, and can complete 200 standard PACK production and inspection daily.
