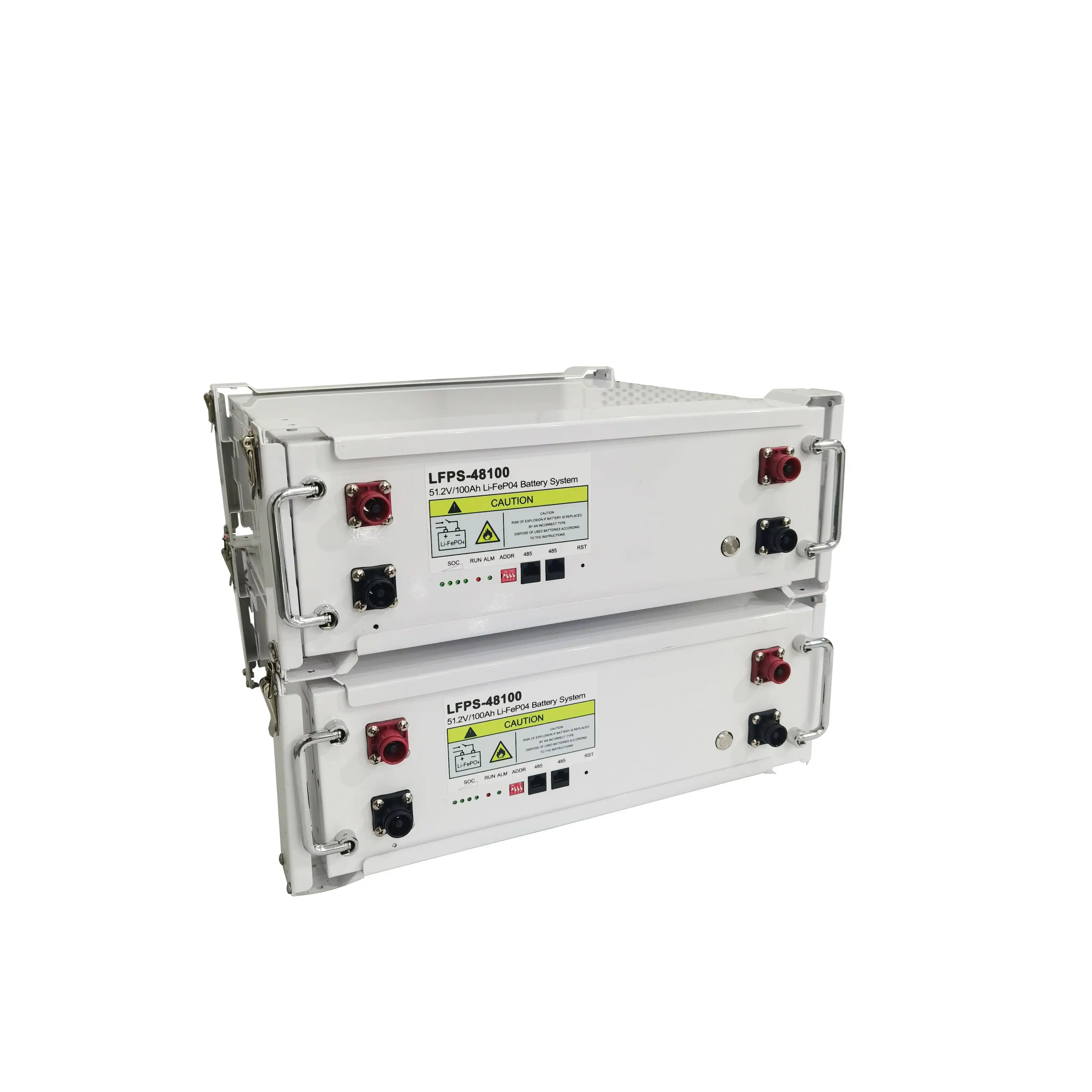

Enerlution、hybess - 48V 100Ah rack Lifepo4 battery 48v lithium ion battery pack 5kWh for Home residential solar energy storage Ungrouped
Considering the industry development and customers' requirements, Hefei Huayu Zhihang Power Energy Co., Ltd. has dedicated to the product development and we've made great achievements. Our employees are skilled at utilizing tools and technology to manufacture 48V 100Ah rack Lifepo4 battery 48v lithium ion battery pack 5kWh for Home residential solar energy storage.The product has an enormous application range and now is widely used in the field(s) of Lithium Ion Batteries. Hefei Huayu Zhihang Power Energy Co., Ltd. will keep pace with the tide and focus on improving technologies, thereby creating and manufacturing products that better suit the needs of customers. We aim to lead the market trends one day.
| Warranty: | 5YEARS | Anode Material: | LFP |
| Chargeable: | Yes | Application: | Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies |
| Battery Size: | 26500, 48100lfp | Brand Name: | BATTERLUTION |
| Certification: | ce, iec62619/ce/un38.3/msds | Model Number: | LFP2500 |
| Place of Origin: | China | Weight: | 33kg, 48 |
| The charging ratio: | 0.7c | The discharge rate: | 0.7c |
| Storage Type: | room temperature | Scalable: | Yes, maximum 8 packs |
| BMS Integrated: | Yes | Dimensions: | 3.5U standard 19' |
| Communication: | RS485 CAN | Battery Voltage: | 51.2 |
| Battery Capacity: | 100Ah | Maximum Charge/Discharge Current: | 100A |
|
Item
|
19’ residential Rack Battery Pack Description
|
|
|
|
|||
|
Product Name
|
2.4kWh Pack
|
2.8kWh Pack
|
4.8kWh Pack
|
5.6kWh Pack
|
|||
|
Ah Capacity
|
48V 50Ah
|
51.2V 55Ah
|
48V 100Ah
|
51.2V 110Ah
|
|||
|
Energy Capacity
|
2.4kWh
|
2.8kWh
|
4.8kWh
|
5.6kWh
|
|||
|
Cell Type
|
3.2V LiFePO4 prismatic cells
|
|
|
|
|||
|
Cell Number
|
15 cells
|
16 cells
|
30 cells
|
32 cells
|
|||
|
Cell Capacity
|
50Ah
|
55Ah
|
50Ah
|
55Ah
|
|||
|
Cell Connection
|
15S
|
16S
|
2P15S
|
2P16S
|
|||
|
Typical Voltage
|
48VDC
|
51.2VDC
|
48VDC
|
51.2VDC
|
|||
|
Working Voltage Range
|
42V-54V
|
44.8V-57.6V
|
42V-54V
|
44.8V-57.6V
|
|||
|
Dynamic voltage difference between cells
|
≤50mv
|
|
|
|
|||
|
Maximum Discharging Current
|
1C
|
|
|
|
|||
|
Maximum Charging Current
|
0.5C
|
|
|
|
|||
|
BMS Integrated
|
Yes
|
|
|
|
|||
|
BMS Communication
|
RS485
|
|
|
|
|||
|
BMS Active Equalization
|
Yes
|
|
|
|
|||
|
SOC Range
|
5% - 95%
|
|
|
|
|||
|
Usable Capacity
|
2.16kWh
|
2.52kWh
|
4.32kWh
|
5.04kWh
|
|||
|
Lifespan
|
5000 cycles
|
|
|
|
|||
|
Warranty
|
9MWh per kWh BTT or 10 years, depends on which one comes sooner
|
|
|
|
|||
|
Working Temperature Range
|
0℃ - 45℃
|
|
|
|
|||
|
Storage Temperature Range
|
-20℃ - 45℃
|
|
|
|
|||
|
Power Connection
|
IP67 push and plug connector
|
|
|
|
|||
|
Self-consumption 25℃ 40%SOC |
5% per month
|
|
|
|
|||
|
Dimensions
|
2U 483x89x428mm
|
|
3.5U 483x160x428mm
|
|
|||
|
Weight
|
24KG
|
25KG
|
46KG
|
47KG
|
|||
