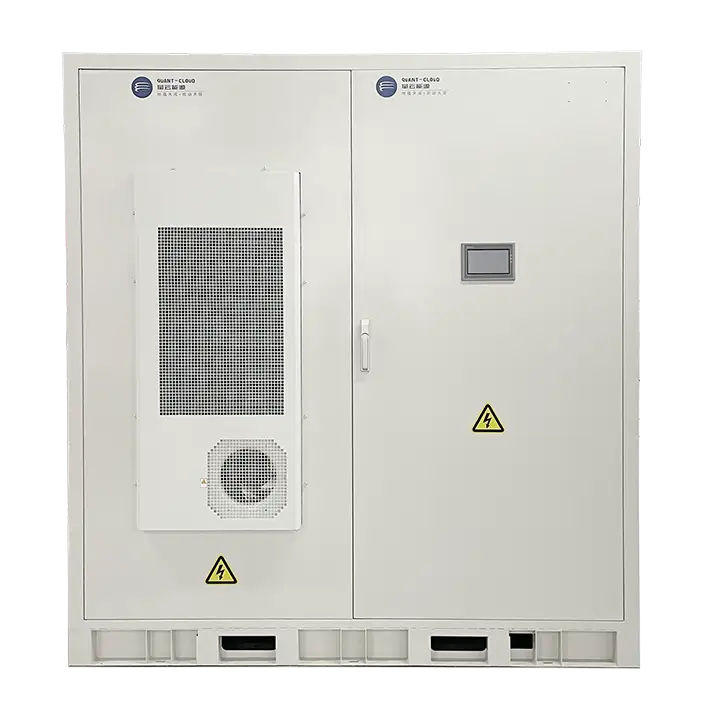

Enerlution、hybess - Guaranteed Quality Unique Popular China Li Ion Lithium Battery Energy Storage Integrated Cabinet Commercial Energy Storage System
In the manufacturing process, the technologies are adopted so as to make sure the process goes smoothly and efficiently.Its application range is very extensive. In the application field(s) of Energy Storage Battery, Guaranteed Quality Unique Popular China Li Ion Lithium Battery Energy Storage Integrated Cabinet is widely used.
5.0
Customization:
Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 100 Pieces)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Our months of efforts in product R&D has finally paid off. Hefei Huayu Zhihang Power Energy Co., Ltd. has successfully transformed the innovative idea into a reality - Guaranteed Quality Unique Popular China Li Ion Lithium Battery Energy Storage Integrated Cabinet. It is the newest product series of our company now. The measured data indicates that meets the market requirements. Since established, Hefei Huayu Zhihang Power Energy Co., Ltd. have always been in strict compliance with international standards and high ethical standards, thus offering customers highly reliable products. We have always been following the business principle of 'honesty & integrity', which ensures that the most credible services are delivered to every customer.
| Place of Origin: | Anhui, China | Brand Name: | HYBESS |
| Model Number: | 30 System parameters | Battery Type: | Lithium Ion |
| Voltage range(V): | 273.6~340.8 | Maximum charging/discharging current(A): | 32A |
| Maximum charging/discharging power(kW): | 10 | Life cycle(25℃,85%DOD): | ≥6000 |
| System size (mm): | 1220 * 860*1850 | Installation: | Ground mounted |
| Temperature control mode: | air conditioner | Fire control mode: | FM200 |
| Noise level: | ≤50dB | Grid mode Off grid mode: | Self-use peak cutting and valley filling power backup |
Product Description
Smartphone(10Wh) 44 Recharges Laptops(41.4Wh) 11 Recharges DJ Drone(89.2Wh) 5Hours
Mini Cooler(260Wx30%) 3 Hours CPAP without heated humidifier(15W) 29Hours Switch(16wh) 28Hours
Catagory | Project | Product model | |||||||||||
3032 | 3040 | 3048 | 3064 | 3075 | 3086 | ||||||||
11 | Battery | Cell type | Lithium iron phosphate | ||||||||||
Cell capacity（Ah） | 105 | 210 | |||||||||||
Cell nominal voltage（V） | 3.2 | ||||||||||||
Battery capacity（kWh） | 32.256 | 40.32 | 48.384 | 64.512 | 75.264 | 86.016 | |||||||
Voltage range（V） | 273.6~340.8 | 273.6~340.8 | 342~426 | 410.4~511.2 | 319.2~397.6 | 364.8~454.4 | |||||||
Maximum charging/discharging current（A） | 52.5 | 97 | 83 | 73 | |||||||||
Maximum charging/discharging power（kW） | 16 | 20 | 24 | 30 | 30 | 30 | |||||||
Life cycle（25℃，85%DOD） | ≥6000 | ||||||||||||
Photovoltaic (pv) interface | Maximum DC input voltage（V） | 850 | |||||||||||
MPPT Operating voltage range（V） | 150~550 | ||||||||||||
Starting voltage（V） | 150 | ||||||||||||
Maximum input current（A） | 100 | ||||||||||||
Maximum DC input power（kW） | 30 | ||||||||||||
MPPT input numb | 1 | ||||||||||||
MPPT efficiency | ≥99% | ||||||||||||
AC side | Rated input power（kW） | 30 | |||||||||||
Input type | three phase five wire system | ||||||||||||
Rated voltage（Vac） | 380±15% | ||||||||||||
Rated current（A） | 45 | ||||||||||||
Rated frequency and range（Hz） | 50/60 | ||||||||||||
Power factor adjustment range | ±1 | ||||||||||||
Harmonic content THDi | ≤3% | ||||||||||||
System Working mode | Grid mode | Self-use / peak cutting and valley filling / power backup | |||||||||||
Off grid mode | Y | ||||||||||||
Others | Maximum net weight of system (kg) | 650 | 700 | 750 | 870 | 950 | 1030 | ||||||
System size (mm) | 1220×860×1850 | ||||||||||||
Installation | Ground mounted | ||||||||||||
Protection grade | IP54 | ||||||||||||
Working efficiency | |||||||||||||
Operating temperature | ﹣10~45℃ | ||||||||||||
Storage temperature | ﹣20~55℃ | ||||||||||||
Relative humidity | 0~95% | ||||||||||||
Working altitude | Altitude < 2000m, no derating | ||||||||||||
Temperature control mode | air conditioner | ||||||||||||
Fire control mode | FM200 | ||||||||||||
Noise level | ≤50dB | ||||||||||||
More Products
Company Profile
Products Line
Certifications
Product packaging
Title goes here.
If you can't find the inverters from the above, please provide us with your inverter, we will do technique test for free.
FAQ
1. Who are we?
--We are based in Anhui, China, start from 2017, sell to world market (90.00%). There are total about 11-50 people in our office.
2.What can you buy from us?
Rack Mounted Household Energy Storage System, Wall Mounted Household Energy Storage System, Ground Eco Household Energy Storage System, Commercial Energy Storage System, Portable Energy Storage System.
3.Is this product safe?
--Our products all pass the safety test of overcharge, over discharge, over temperature, short circuit, acupuncture and so on, with no fire or explosion under any circumstances.
4.How do I confirm the high quality of the products you send me?
--Our batteries are all grade A level, no matter how many batteries you order, we will test each product before shipping.
5.The battery is very heavy. Will it be damaged while shipping?
--That's one of the issues we have been concerned. After a long time of improvement and verification, our packing is now very safe and reliable. When you open the package, you will see our sincerity.
6.Can I have my logo on the products?
--Yes. Please inform us formally before production and confirm the design according to our sample.
7. why should you buy from us not from other suppliers?
--We specialize in the development and production of energy storage batteries.
We have a solid R&D team, dedicating to battery management system and energy management system products.
8. what services can we provide?
--Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU；
Accepted Payment Currency: USD, EUR, AUD, HKD, CNY;
Accepted Payment Type: T/T, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese
9.Does the mode of transportation to our country include tax?
--It depends on the country and mode of transportation you choose. Most Asian countries, most European countries, the US and Canada have shipping lanes including taxes.
--We are based in Anhui, China, start from 2017, sell to world market (90.00%). There are total about 11-50 people in our office.
2.What can you buy from us?
Rack Mounted Household Energy Storage System, Wall Mounted Household Energy Storage System, Ground Eco Household Energy Storage System, Commercial Energy Storage System, Portable Energy Storage System.
3.Is this product safe?
--Our products all pass the safety test of overcharge, over discharge, over temperature, short circuit, acupuncture and so on, with no fire or explosion under any circumstances.
4.How do I confirm the high quality of the products you send me?
--Our batteries are all grade A level, no matter how many batteries you order, we will test each product before shipping.
5.The battery is very heavy. Will it be damaged while shipping?
--That's one of the issues we have been concerned. After a long time of improvement and verification, our packing is now very safe and reliable. When you open the package, you will see our sincerity.
6.Can I have my logo on the products?
--Yes. Please inform us formally before production and confirm the design according to our sample.
7. why should you buy from us not from other suppliers?
--We specialize in the development and production of energy storage batteries.
We have a solid R&D team, dedicating to battery management system and energy management system products.
8. what services can we provide?
--Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU；
Accepted Payment Currency: USD, EUR, AUD, HKD, CNY;
Accepted Payment Type: T/T, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese
9.Does the mode of transportation to our country include tax?
--It depends on the country and mode of transportation you choose. Most Asian countries, most European countries, the US and Canada have shipping lanes including taxes.
