1. Outdoor installation, convenient construction
2. Support parallel expansion
3. Built in multiple operating modes
4. Remote operation and maintenance
5. Flexible deployment
ERD576-05C172
Technical Parameters
Battery cell model | IFP27175200A-100Ah |
Battery cell type | LFP |
Nominal Voltage | 3.2V |
Nominal Currency | 100A |
Cycle Times | >=6000 (@25°C, 80%EOL) |
Connection Types | 3P180S |
Rated Capacity | 300Ah |
Rated Power Capacity | 172.8KWh |
Rated Voltage | 576V |
Temperature Control Type | Liquid Cool |
Operation Voltage Range | 513~657V |
Protection Level | IP67 |
Max Discharge currency | 200A |
Dimension(Length*Wide*Height) | 910*2320*1250mm |
Max Weight | <=2000KG |
Working Temperature | -20~50°C |
Communication Method | CAN/RS485 |
ERD576-0SC172

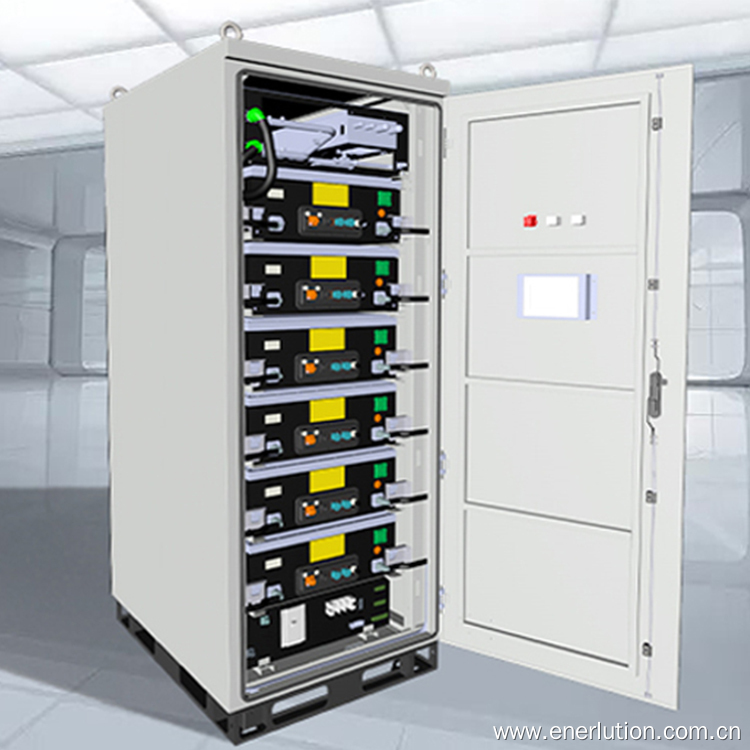

172 degree electrician commercial liquid cooled energy storage cabinet battery
Product features:
1. Outdoor installation, convenient construction
2. Support parallel machine expansion
3. Built in multiple operating modes for remote operation and maintenance
4. Flexible deployment
We have prepared a series of unique service contents for you, from early consultation to on-site service, to obtain support through various channels such as online and offline.
We are committed to producing the highest quality products at the most competitive prices. Therefore, we sincerely invite all interested companies to contact us for more information.
Enerlution Energy Technology Co., Ltd., established in Hefei in 2017, is a national high-tech enterprise focusing on R & D, production and sales of BMS systems, household energy storage systems and small industrial and commercial energy storage systems.
