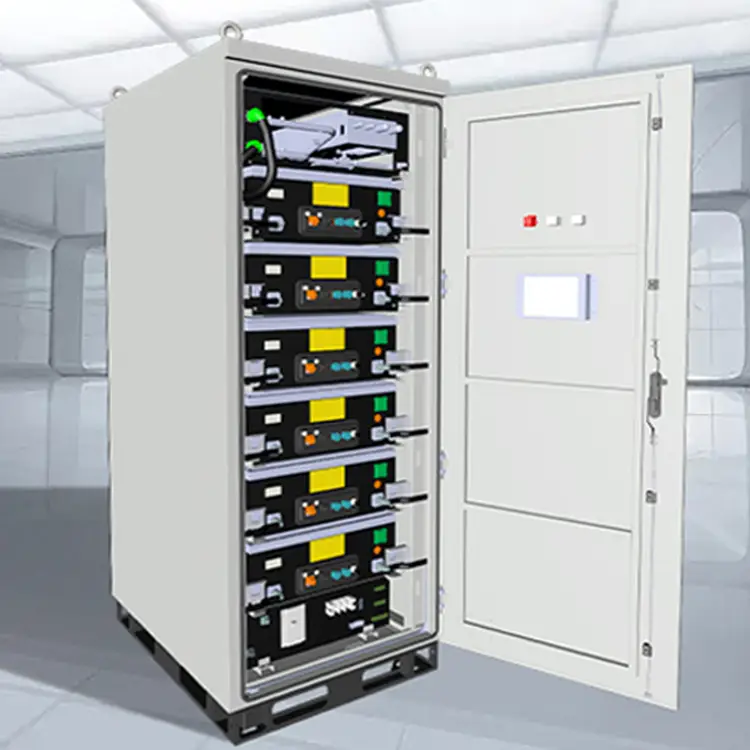

Enerlution Home use energy storage system-ERD576-05C172

1. Outdoor installation, convenient construction

2. Support parallel expansion

3. Built in multiple operating modes

4. Remote operation and maintenance

5. Flexible deployment


    oops...!

    no product data.

    Go to homepage
    ERD576-05C172-(中文版).pdf
    ERD576-05C172-(中文版).pdf


    ERD576-05C172

    Enerlution Home use energy storage system-ERD576-05C172 6

    Technical Parameters



    4.4.
    Battery cell modelIFP27175200A-100Ah
    Battery cell typeLFP
    Nominal Voltage3.2V
    Nominal Currency100A
    Cycle Times>=6000 (@25°C, 80%EOL)
    Connection Types3P180S
    Rated Capacity300Ah
    Rated Power Capacity172.8KWh
    Rated Voltage576V
    Temperature Control TypeLiquid Cool
    Operation Voltage Range513~657V
    Protection Level
    IP67
    Max Discharge currency200A
    Dimension(Length*Wide*Height)
    910*2320*1250mm
    Max Weight<=2000KG
    Working Temperature-20~50°C
    Communication MethodCAN/RS485

    ERD576-0SC172

    172 degree electrician commercial liquid cooled energy storage cabinet battery

    Product features:

    1.  Outdoor installation, convenient construction

    2.  Support parallel machine expansion

    3.  Built in multiple operating modes for remote operation and maintenance

    4.  Flexible deployment
