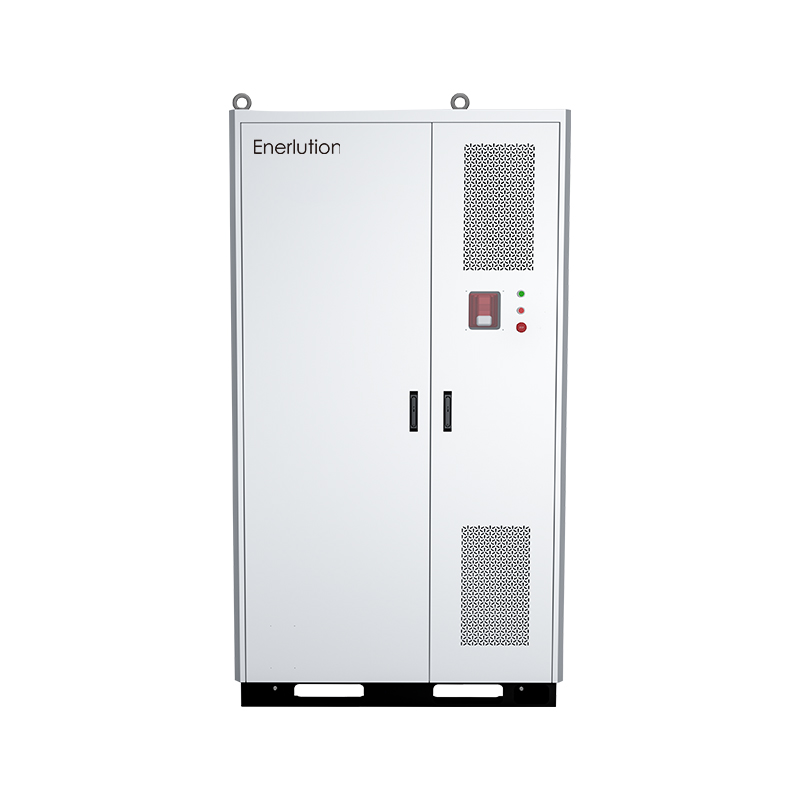

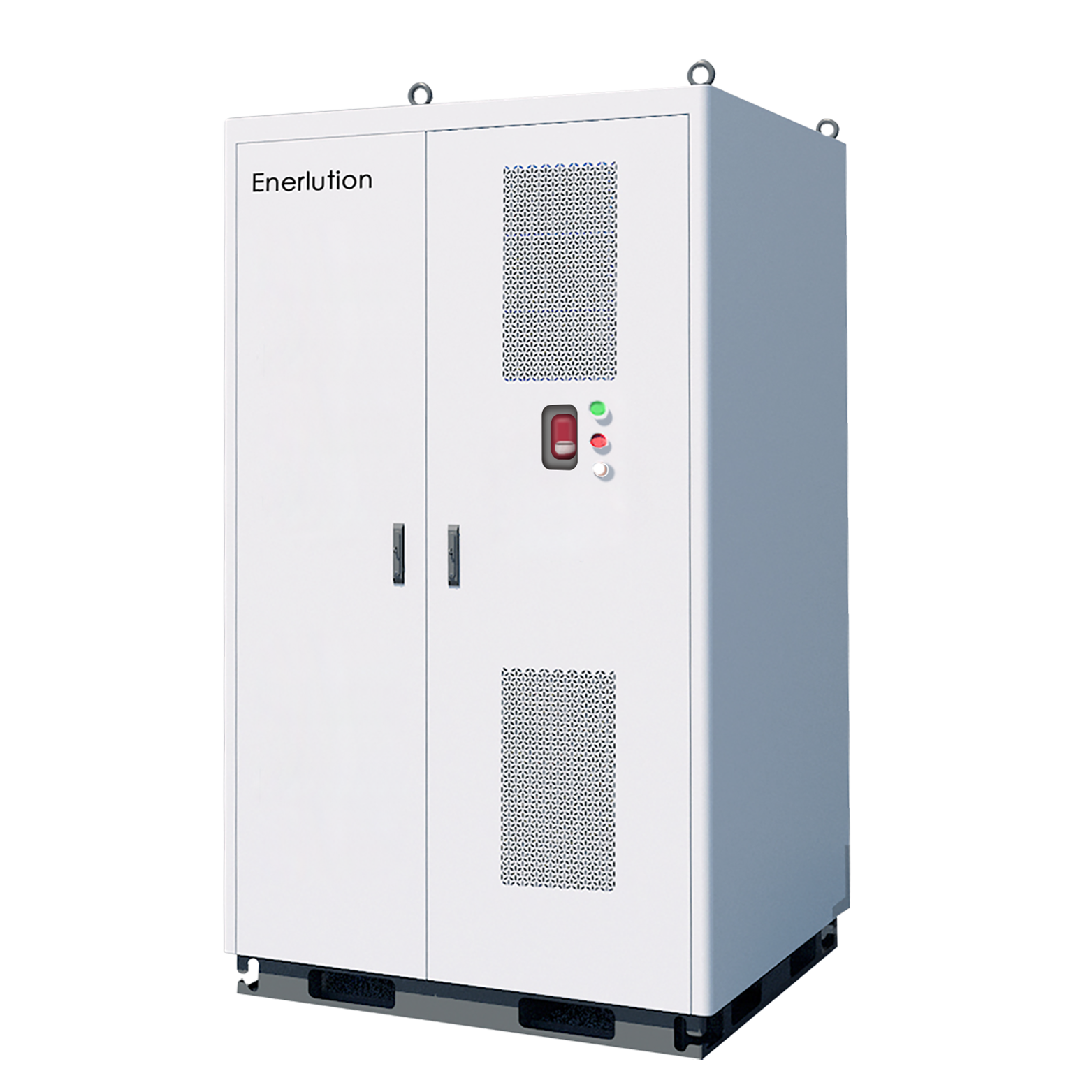

Small industrial and commercial energy storage batteries-BCH-100230
1. The highly integrated ESS, fully pre-assembled, facilitates transportation,on-site installation, and operational maintenance.
2. Modular design supporting 2-10 parallel units, facilitating system expansion.
3. Secondary fire protection for cabinet and PACK , automotive-grade software for thermal runaway warning.
4. IP65 protection for battery compartment, IP54 for electrical compartment in outdoor cabinet design, optional C5 anti-corrosion level.
5. Active disconnection protection for both AC and DC.
6. Rapid status monitoring and fault recording enabling early warning and fault localization, integrating battery performance monitoring and recording.
| Model | BCH-100230 |
|---|---|
| PV INTERFACE | |
| PV Input voltage | 300-570Vdc |
| Max.PV Input Power | 100kW |
| Number of PV String | 1 |
| Max.PV Input Current | 200A |
| Max.PV Open Circuit Voltage | 600V |
| BATTERY PARAMETER | |
| Cell Type | LiFePO4 |
| Cell Specification | 3.2V/100Ah |
| System Configuration | 3P240S |
| Rated Capacity | 230.4kWh |
| Voltage Range | 684~852V |
| AC PARAMETERS (ON-GRID) | |
| Rated Output Power | 100kW |
| Rated Output Current | 145A |
| AC Connection Method | Three phase four wire system |
| Grid Voltage Range | 340V-460V |
| Grid Frequency Range | 50Hz/60Hz±2.5Hz |
| GENERAL PARAMETERS | |
| Dimension (W*D*H) | 1320*1280*2370mm |
| Max Weight | 2500kg |
| Operating Temperature Range | -20℃~50℃ |
| Working Altitude | ＜2000m |
| Temperature Control Method | Battery: Liquid cooling; Electrical compartment: wind Cooling |
| Noise Level | ＜75db |
| USAGE SCENARIOS | |
| Can Be Used Outdoors | Approved |
1、Commercial energy storage for electricity bill optimization
2、Industrial energy storage for peak and off-peak electricity pricing management
3、Solar power generation and energy storage system
4、Off-grid energy storage system solutions
5、Backup power energy storage for commercial and industrial use
