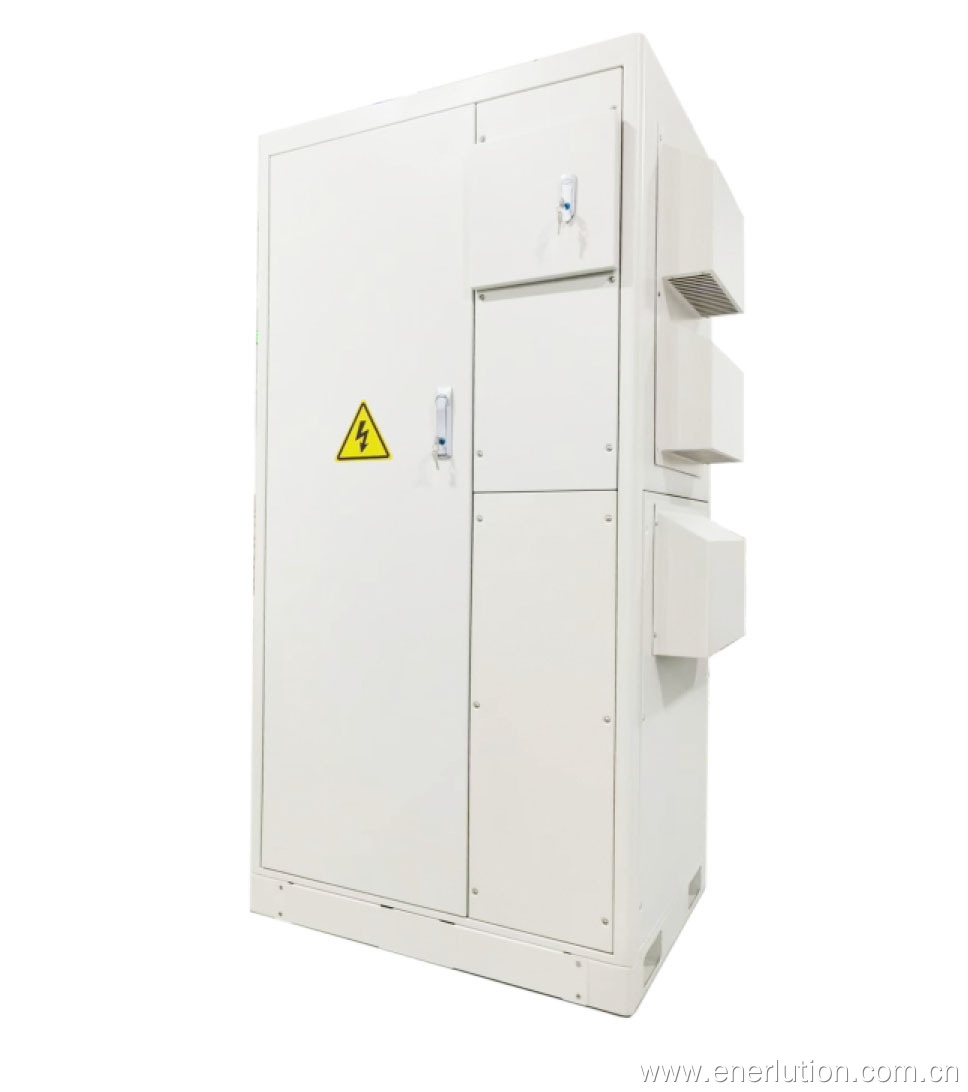

1. Integrated solar energy storage
2. 4-hour backup power
3. Outdoor installation
4. Remote operation and maintenance
5. Built-in multiple operating modes
Technical Parameters
1.Cell Parameters
Cell Model: IFP27175200A-1 OOAh
Cell Type :LFP
Nominal Voltage: 3.2V
Nominal Capacity: 100Ah
Cycle Life:6000 ( @25 °C, 80%EOL)
2.Battery Cluster Parameters
Configuration 3P180S
Rated Capacity 300Ah
Rated Energy 1728kWh
Nominal Voltage 576V
Temperature Control Method Liquid Cooling
Operating Voltage Range 513~657V
Protection Level I P67
Maximum Discharge Current 200A
3.General Parameters
Size (W*H*D) 910*2320*1250mm
Max Weight: <=2000KG
Operating Temperature: - 20 ~ 50 °C
Communication: CAN/RS485
Dry Contacts: 4 channels
