High Safety
Per cabinet forms an independent fire zoner;
Cabinet body:fire resistance rating of 1.5 hours;
Tem and somke sensors +aerosol and water fire protection system;
Multiple Scenarios
Urban buildings,communities;
Low-voltage area network;
Highly integrated liquid-cooled C&I ESS;
Flexible Integration
Prefabricated cabinets, simplified on-site installation;
Adapt size of 20ft and 40ft standard container;
Supports parallel connection and system expansion;
Smart and User-Friendly
Supports parallel and offline mode;
Early fault warning and location;
Real-time monitoring and fault logging;

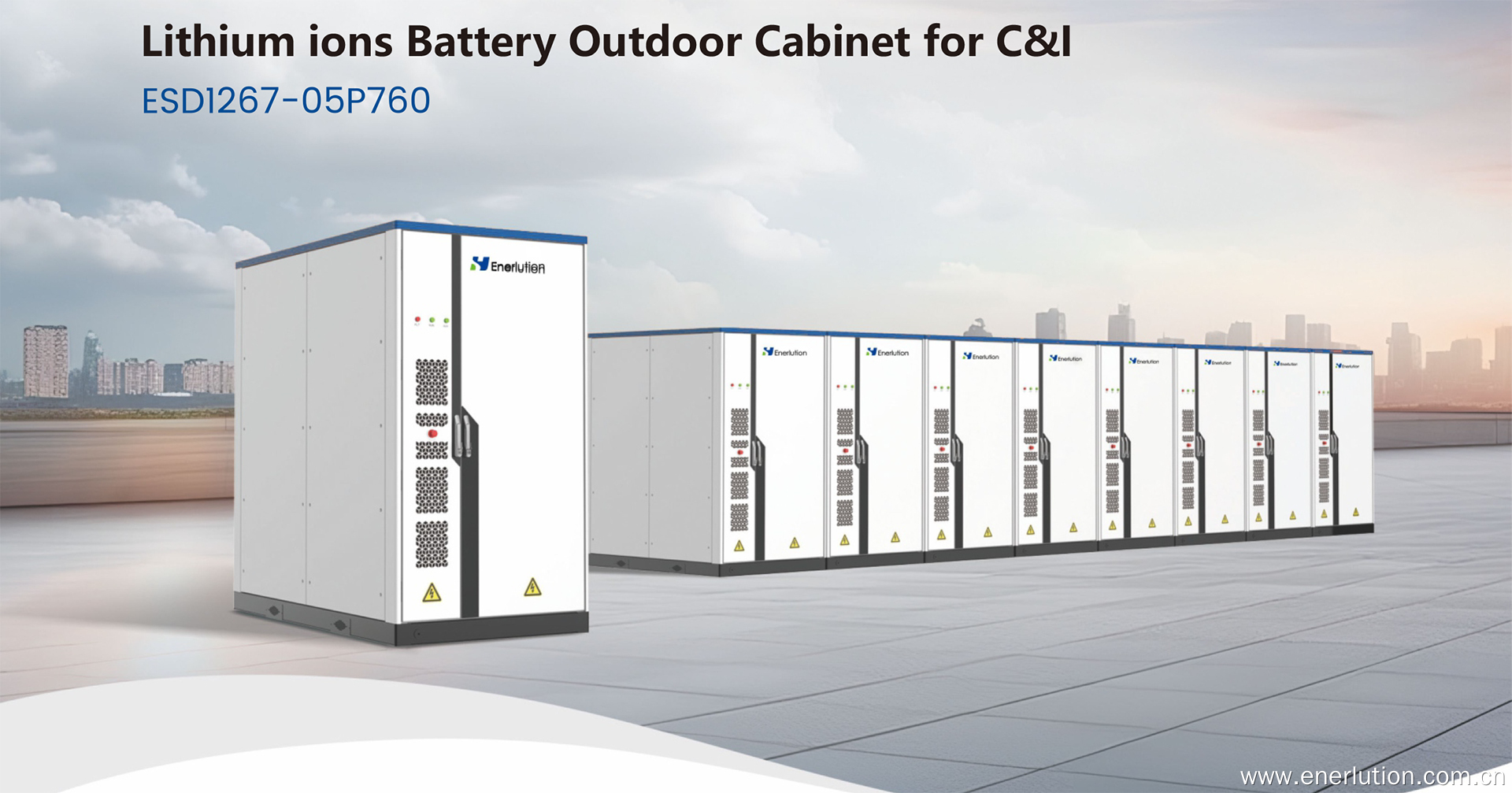

Lithium ions Battery Outdoor Cabinet for C&I-ESD1267-05P760
Technical Parameters
Model | ESD1267-05P760 |
Cell Model | LFP-300AH |
Pack Configuration | Pack:1P44S Rack:1P396S System:2P396S |
Cycle Life | Cell:≥8000 0.5P,@25℃±3℃ |
Nominal Energy (kWh)(0.5P,25℃) | Pack:42.2 Rack:380 System:760 |
Nominal Voltage (Vdc) | Pack:140.8 Rack/System:1267.2 |
Recommended Voltage Range (Vdc) | Pack:132.2~158.4 Rack/System:1108.8~1425.6 |
Max.Charge/Discharge Rate | 0.5P@25℃ |
Max.Charge Power (kW) | 380(0.5P) |
Conditions | |
Storoage Temperature(℃) | -30~60 |
Operating Temperature(℃) | -30~55 |
Working Relative Humidity(%) | 0~95(non-condensing) |
Altitude(m) | <3000(≥3000 derating) |
Parameters | |
Ingress Protection | IP54 |
Cooling | Intelligent Liquid Cooling |
Communication Interface | CAN,RS485,Ethernet |
Communication Protocol | Modbus-TCP/IP |
Fire Suppression System | Aerosol/Water |
Standards&Certification | UL1973,UL9540A,IEC62619,IEC63056,UN38.3,NFPA855 Compliant |
Dimensions(W*D*H)mm | 1400*2400*2500 |
Weigh(T) | ≤8 |
